Atlas XC Hardtail

Atlas XC Hardtail

$2,062.50
$4,125.00 $2,062.50
50% off Sold out
 More payment options
View full details

Description

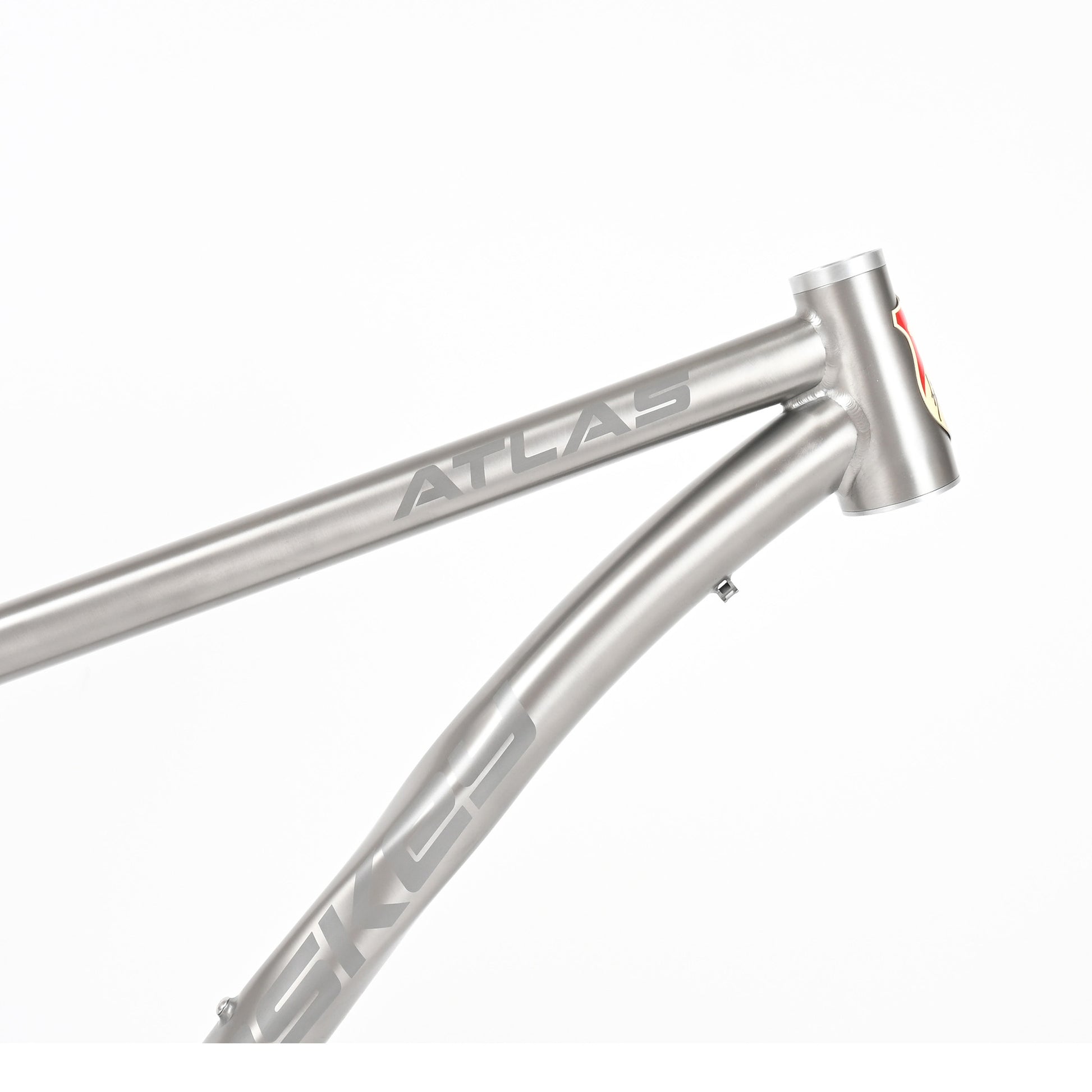

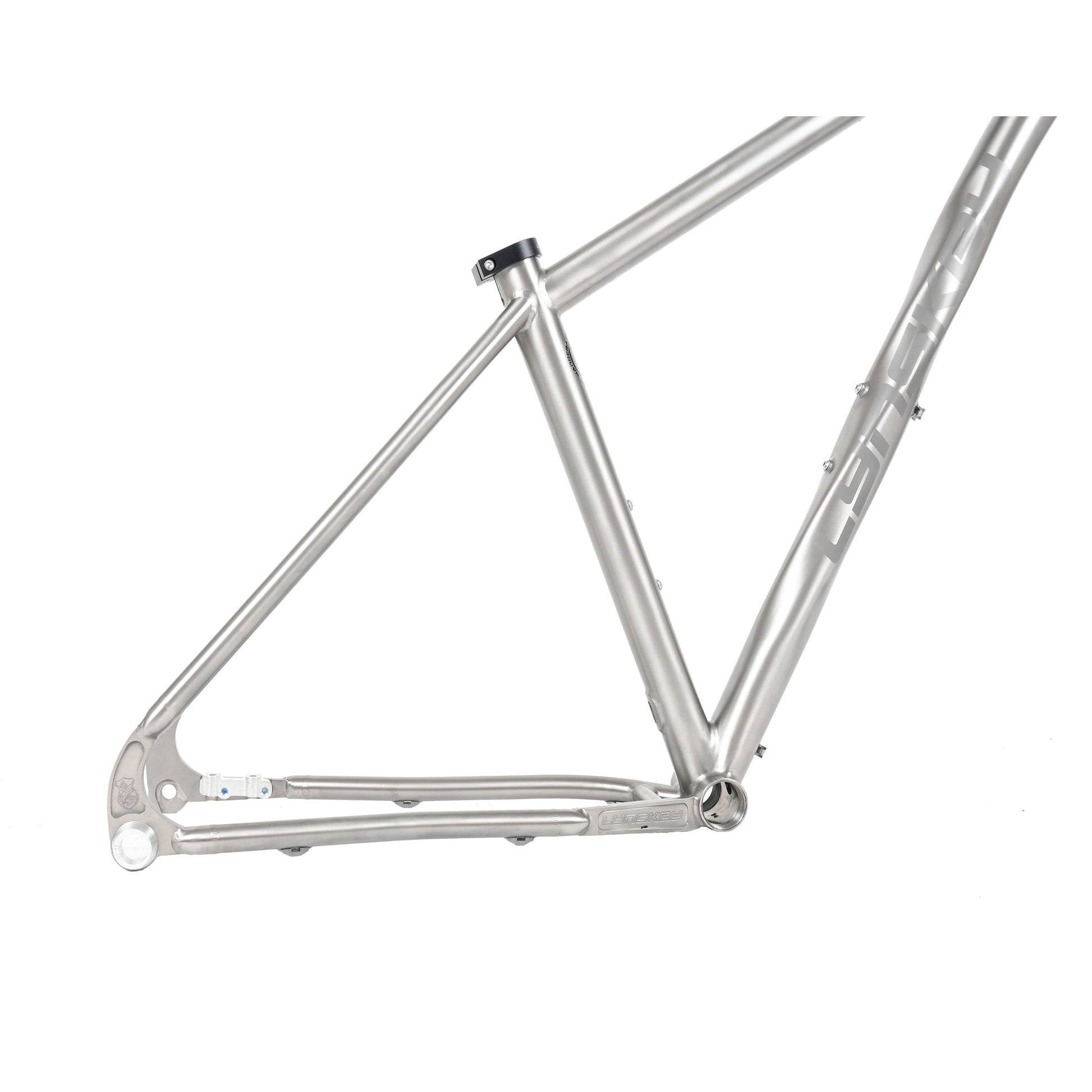

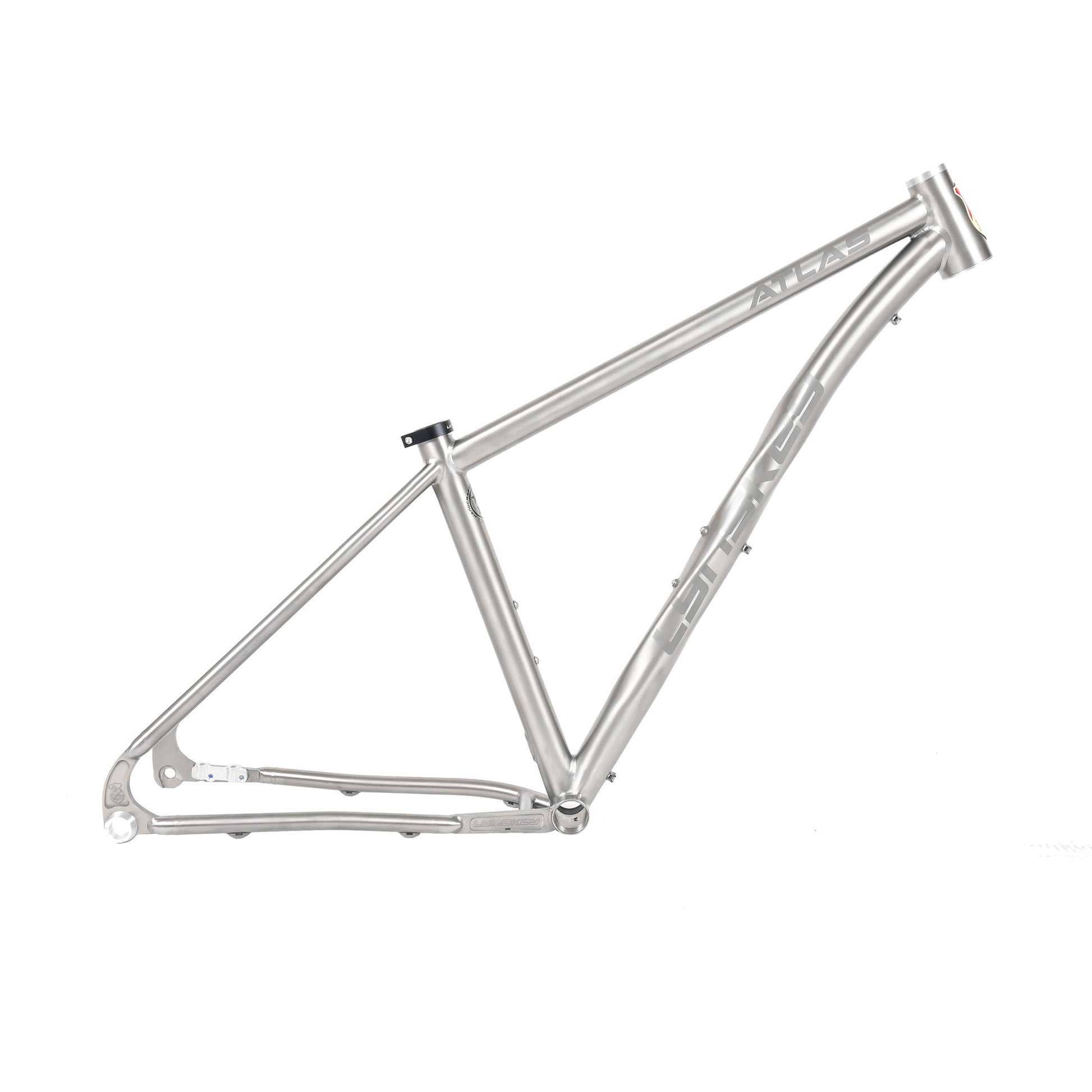

The Atlas cross-country bike frame is engineered for performance, designed to tackle a wide variety of terrains with confidence. It combines strength and agility for optimal speed and durability on long, challenging rides. The geometry of the Atlas is tuned for efficient power transfer and sharp handling on technical climbs.

The Atlas is built for riders who demand high performance and durability for the challenges of cross-country riding. Whether you're racing or simply exploring, the frame delivers the strength and efficiency needed to conquer any trail.

Frame Specs

  • 29 x 2.5" tire clearance
  • UDH ready dropouts
  • 1-1/8"-1-1/2" tapered headtube
  • IS42/IS52 headset fitment
  • 12 x 148mm rear hub spacing
  • 73mm BSA English Threaded Bottom Bracket
  • Tuned for a 120mm travel fork
  • 160mm-180mm rear rotor

Geometry Chart

Measurements shown below are in centimeters.

ATLAS SIZING S M L XL
Seat Tube Length394432460495
ETT (Effective Top Tube)578593609625
Headtube Angle68.568.568.568.5
Seat Tube Angle76767676
BB Drop58585858
Chainstay Length445445445445
Headtube Length108108112116
Rake44444444
Standover Height721757784839
Wheelbase1135115011661182
Front Center696711727744
Stack630630634637
Reach421436451466
