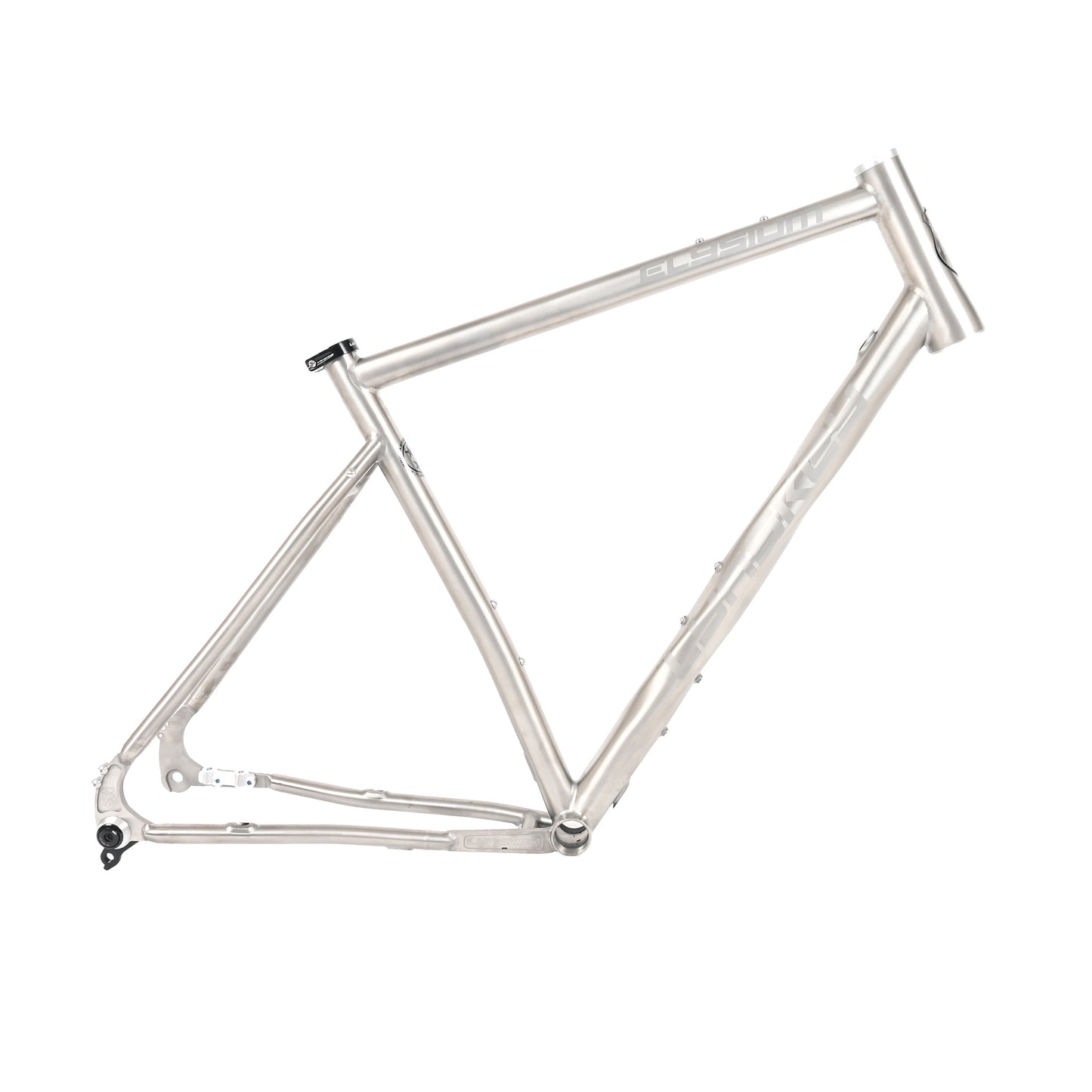

Elysium Gravel Frame

Elysium Gravel Frame

Regular price $2,225.00
Regular price $4,450.00 Sale price $2,225.00
50% off Sold out
View full details

Introducing the Elysium, a machine built to take you beyond the ordinary and into the extraordinary. Designed for riders who seek the perfect blend of comfort, speed, and rugged capability, the Elysium is more than just a gravel bike—it’s a gateway to a new realm of adventure. Whether you’re racing down the gravel roads, tackling technical trails, or embarking on a multi-day bikepacking journey, the Elysium ensures that every ride feels like you’ve arrived in paradise.

This  is more than just a bike; it’s an invitation to ride in a world where performance meets paradise. Whether you’re racing against the clock, exploring backroads, or embarking on a bikepacking adventure, the Elysium is ready to elevate every ride.

It’s time to experience what it feels like to ride in a state of flow—because on the Elysium, the road ahead is always full of possibilities.

Frame Specs

  • Performance engineered 3AL-2.5V tubeset for responsiveness, stability, durability, and comfort

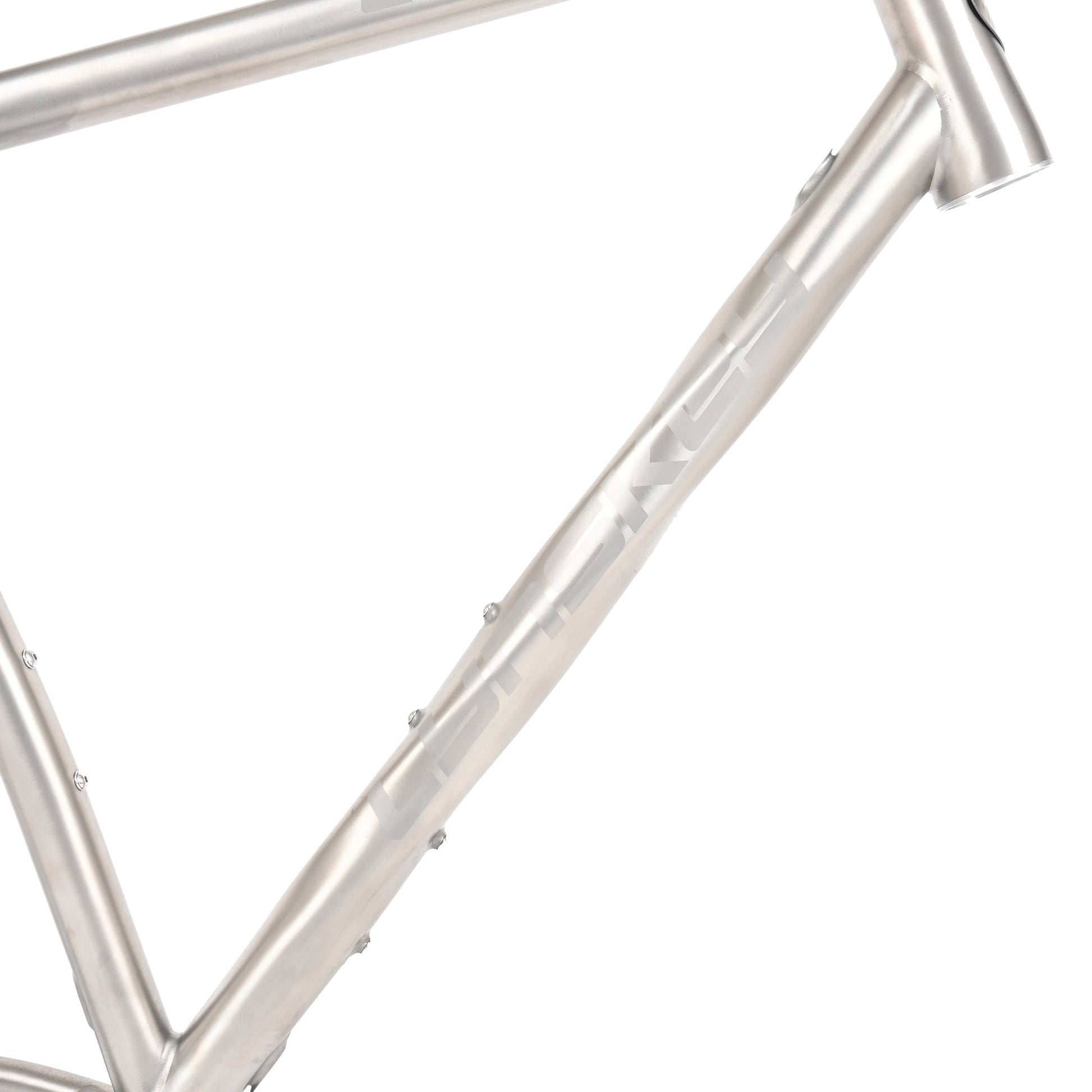

  • 1.75" bi-ovalized and Helix twisted downtube for ultimate power transfer while retaining compliance

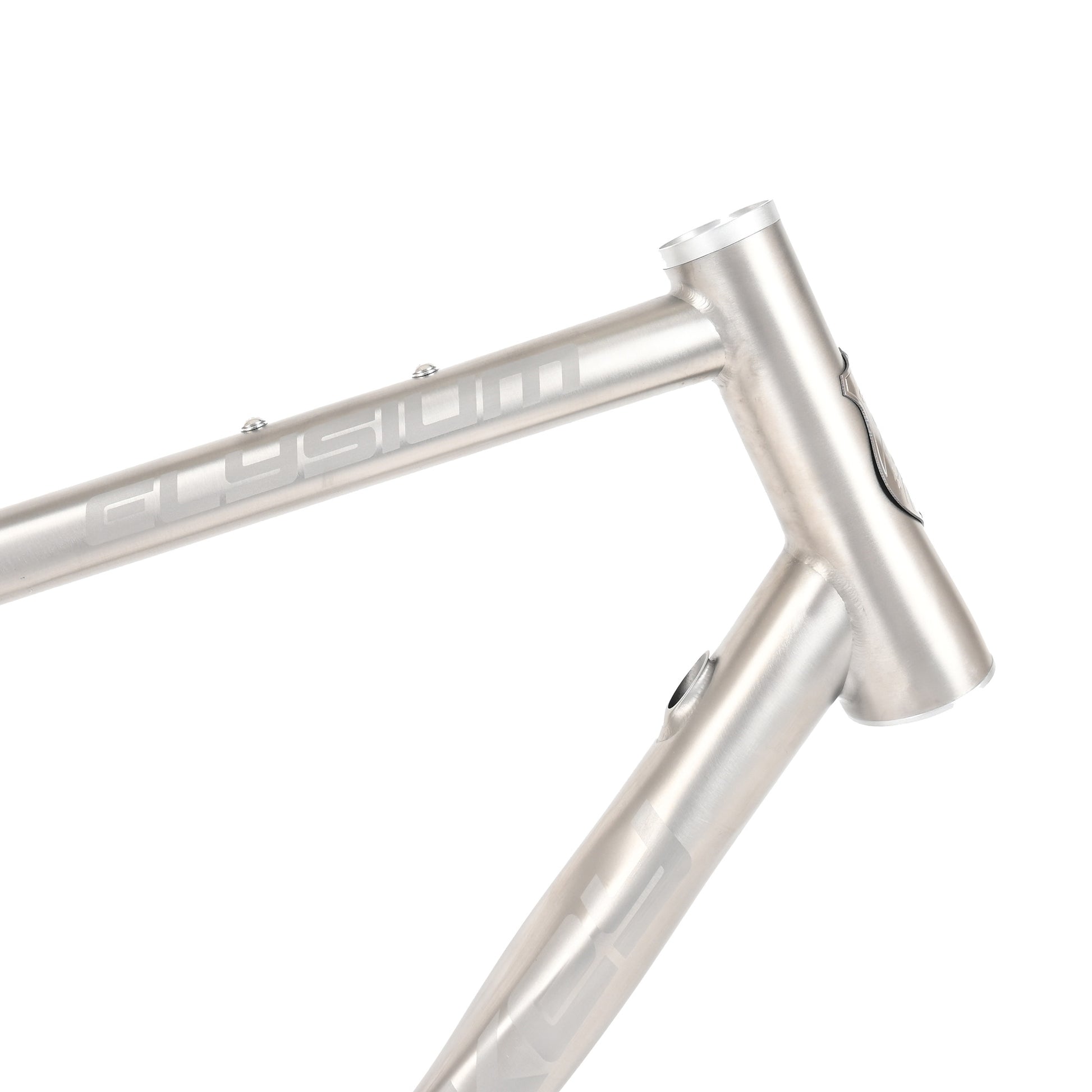

  • Squared 1.5" top tube for better steering response
  • Internal Cable Routing
  • (1) top tube mount and (3) water bottle mounts
  • Rack and fender mounts
  • Tapered Headtube

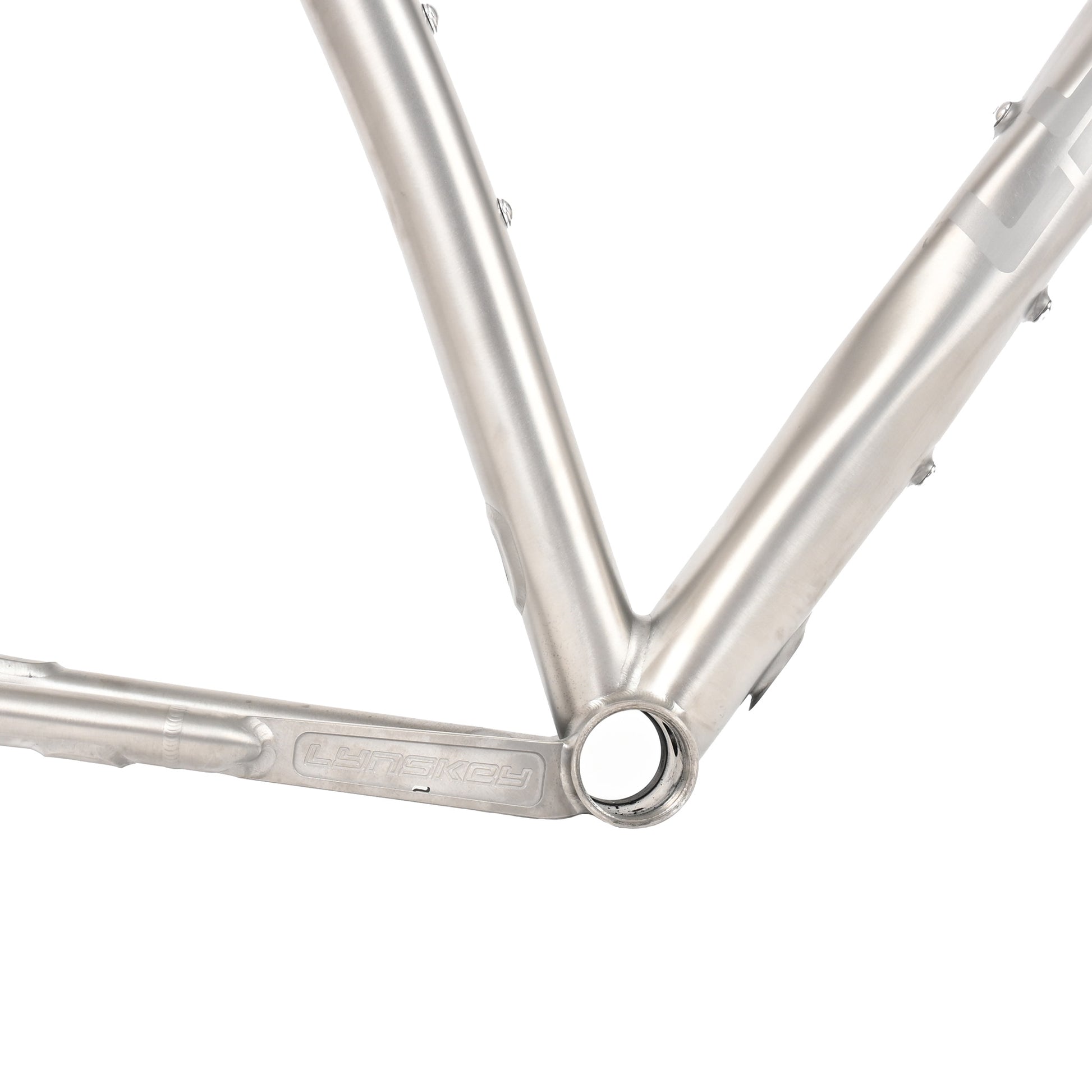

  • 68mm English Threaded BSA Bottom Bracket Shell
  • Conquer any mixed terrain with clearance for 700c x 50c tires

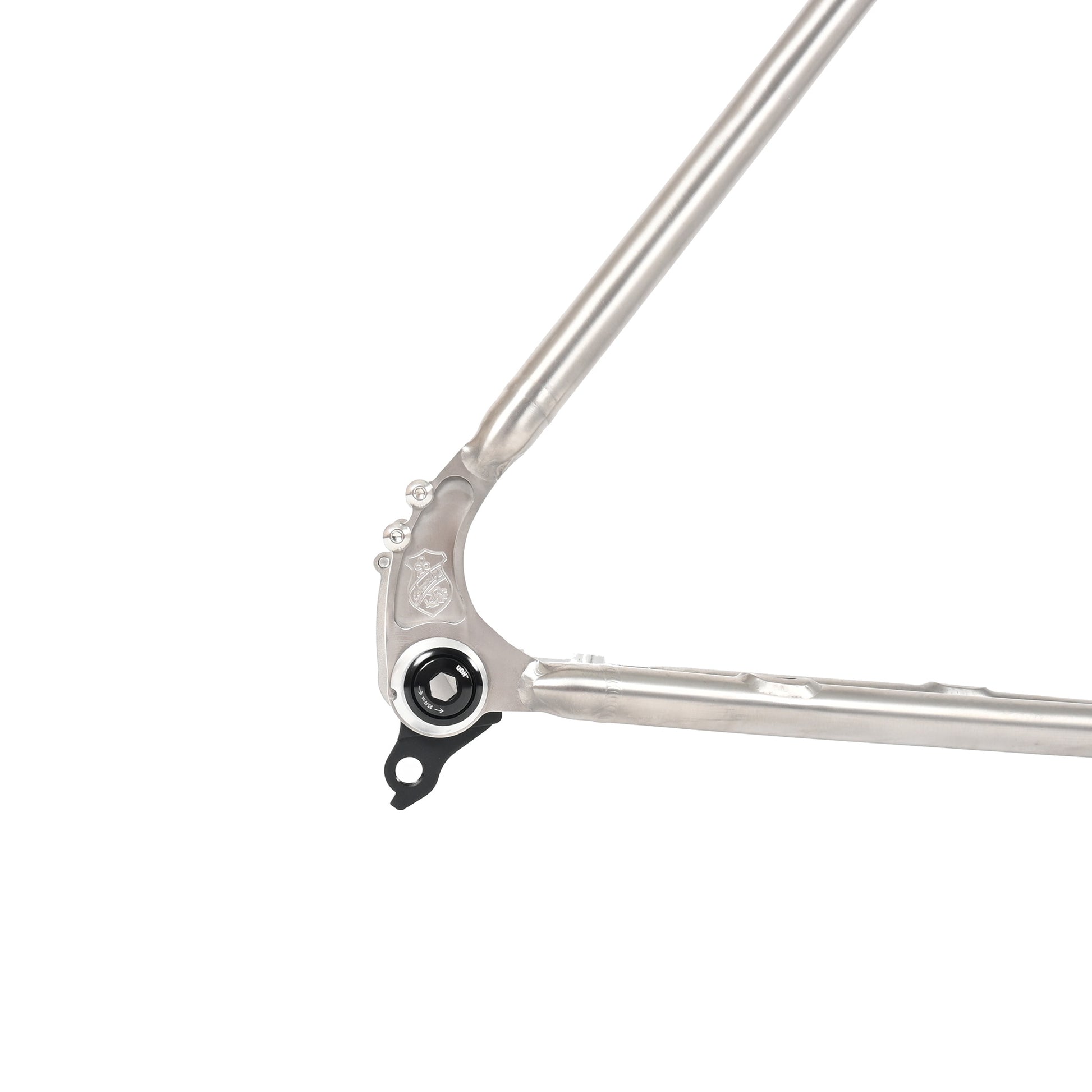

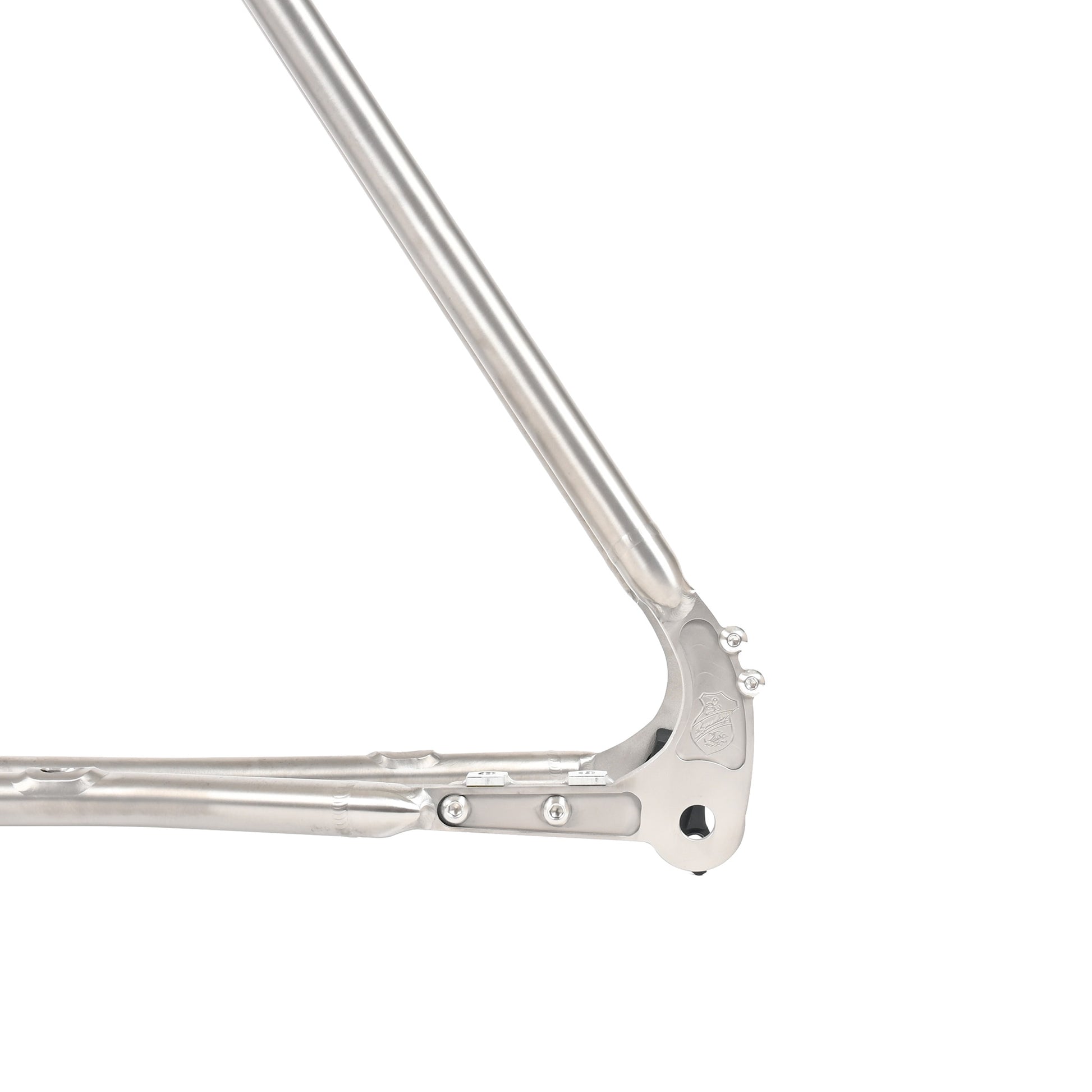

  • UDH compatible dropouts
  • Shortened chain stays for more responsive turning

Geometry Chart

Measurements shown below are in centimeters.

ELYSIUM SIZING XS S M ML L XL XXL
Rec. Height: Domestic5'0" - 5'2"5'3" - 5'5"5'6" - 5'8"5'9" - 5'11"6'0" - 6'2"6'3" - 6'5"6'5"+
Rec. Height: Int'l (cm)152cm - 157cm160cm - 165cm168cm - 173cm175cm - 180cm183cm - 188cm190cm - 195cm196cm +
Seat Tube Length450470490510530550570
Top Tube Length Effective519533545560574594619
Head Tube Angle70°70°70.5°70.5°71°71°71.5°
Seat Tube Angle73.5°73.5°73.5°73.5°73.5°73°72.5°
Bottom Bracket Drop75757575757373
Chain Stay Length430430430430430430430
Head Tube Length110126145170193217241
Rake45454545454545
Stand Over Height716737758780800824824
Wheelbase1007101910261039104910751079
Front Center590601608625630646659
Stack540553572593617637662
Reach370375380384391400410
Frame Weight (lbs.)3.83.94.04.14.24.34.4
