Meraki Road Frame

Meraki Road Frame

Regular price $2,225.00
Regular price $4,450.00 Sale price $2,225.00
50% off Sold out
View full details

Introducing the Meraki, a road bike that captures the essence of precision, performance, and elegance. Inspired by the Greek word "Meraki," meaning to do something with soul, creativity, and love, this bike is designed for riders who demand the ultimate in comfort, durability, and performance.

It is a statement of passion and craftsmanship. Designed for riders who appreciate the art of cycling, it merges comfort with performance, style with substance. With the Meraki, every pedal stroke becomes a journey that embodies soul, creativity, and love for the road.

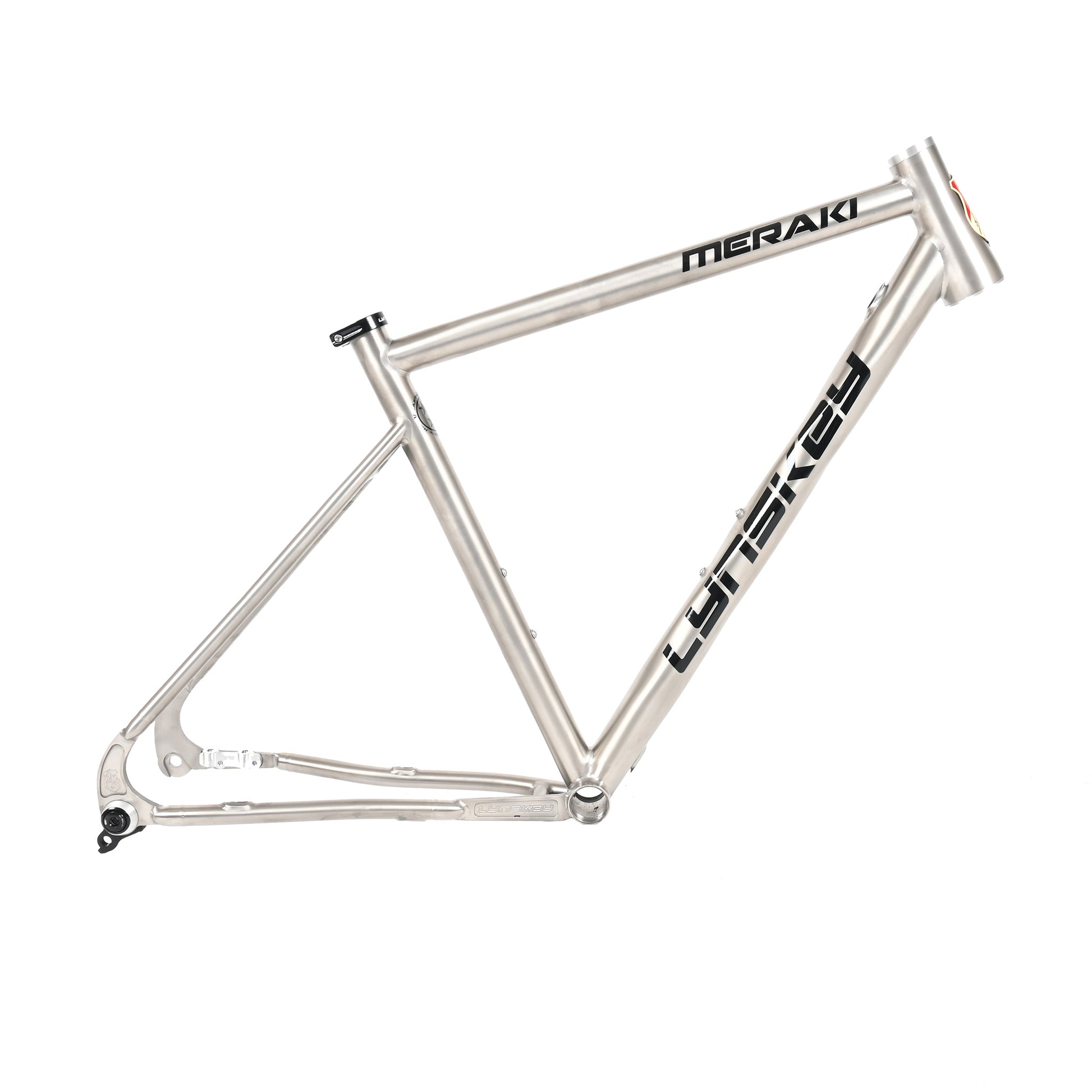

Frame Specs

  • Performance engineered 3AL-2.5V tubeset for responsiveness, stability, durability, and comfort

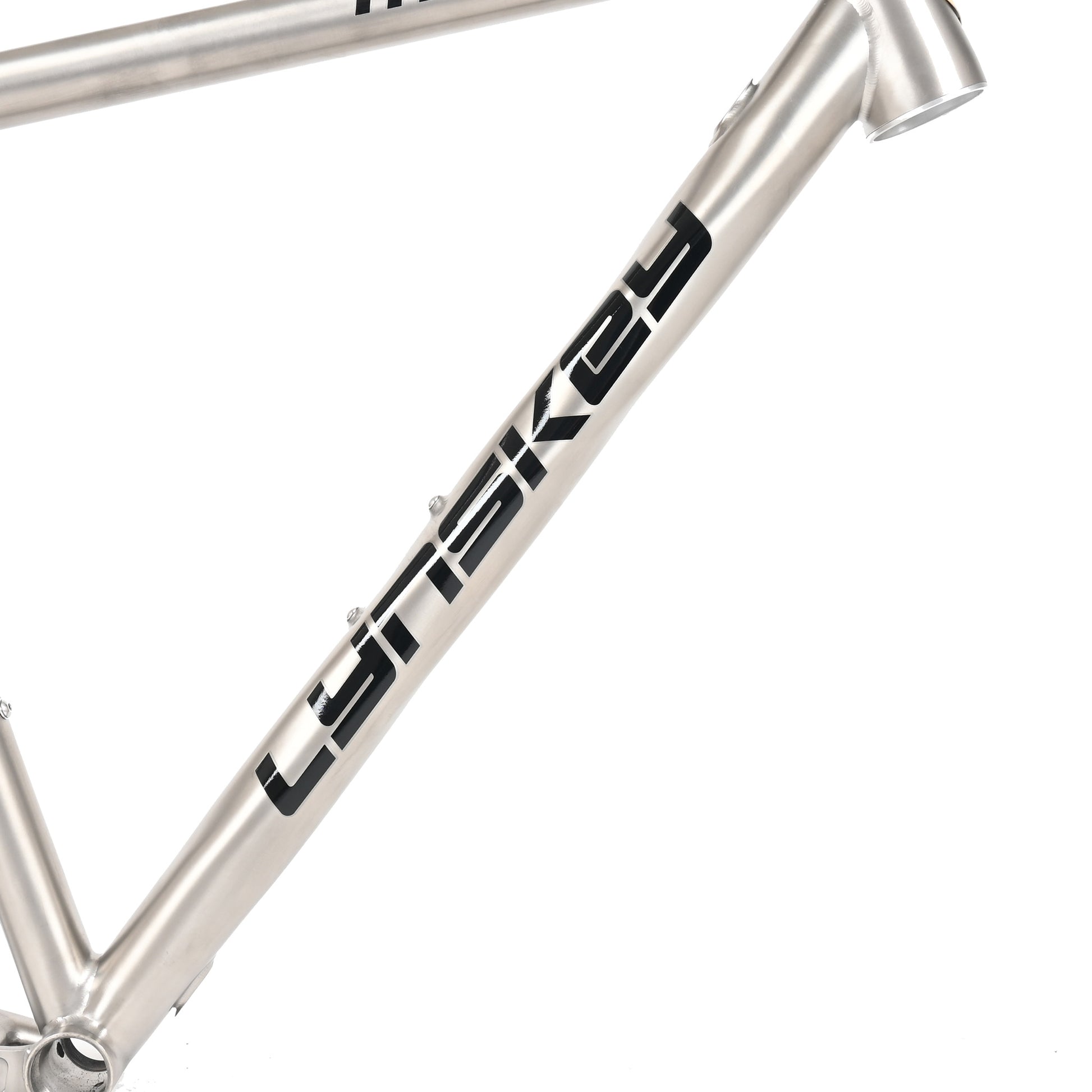

  • 1.75" bi-ovalized and Helix twisted downtube for ultimate power transfer while retaining compliance

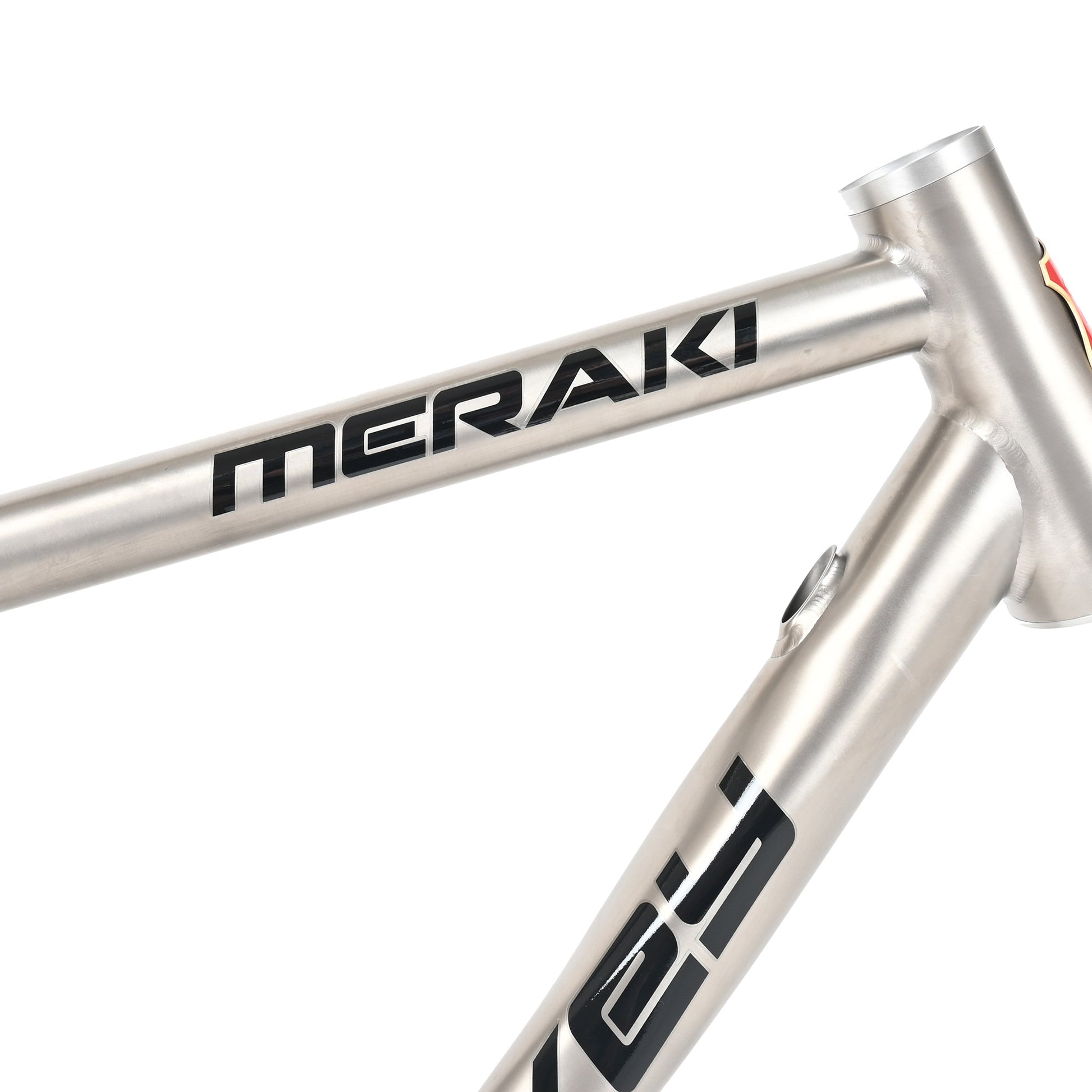

  • Squared 1.5" top tube for better steering response
  • Internal Cable Routing
  • (2) water bottle mounts

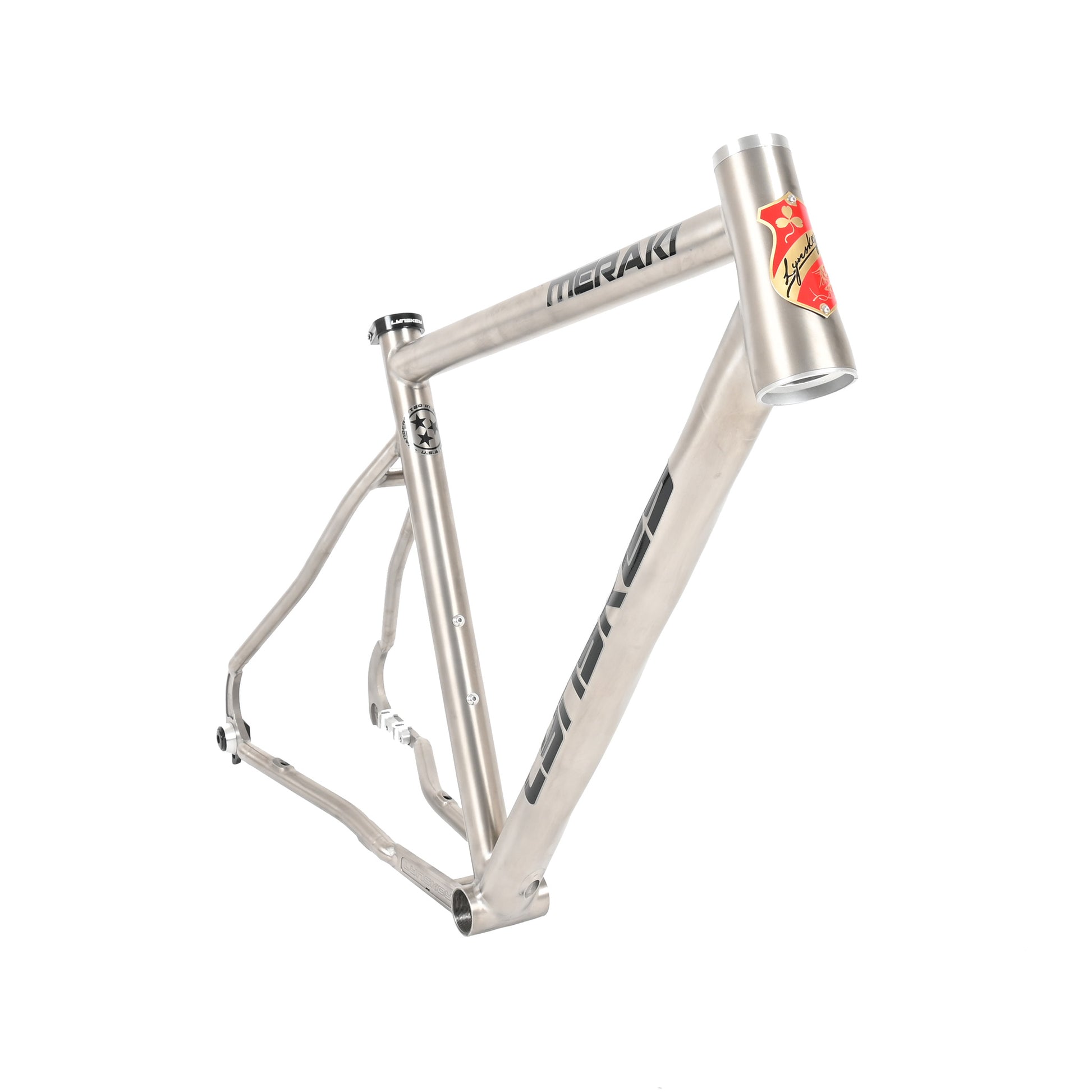

  • Tapered Headtube

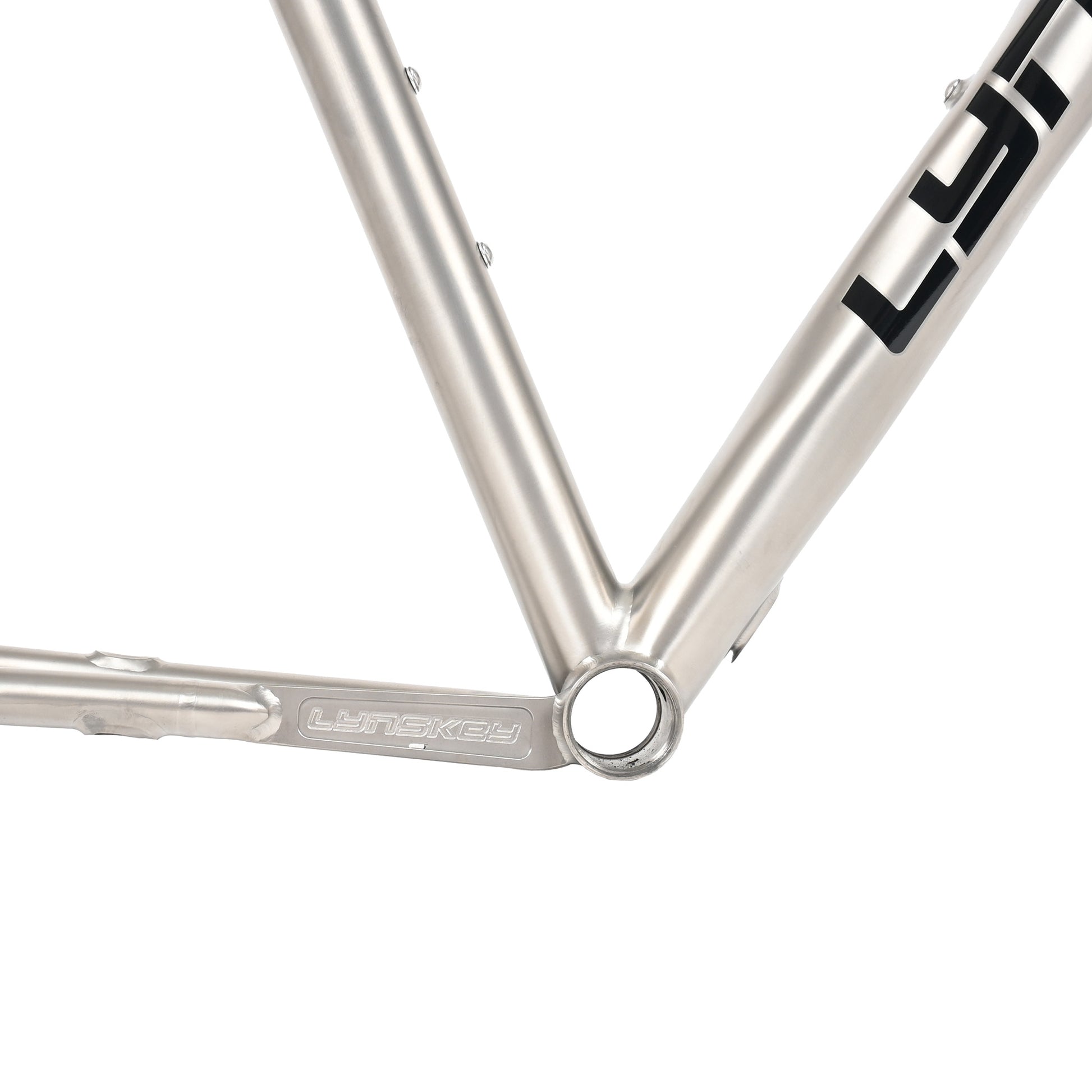

  • 68mm English Threaded BSA Bottom Bracket Shell
  • Conquer any mixed terrain with clearance for 700c x 32c tires

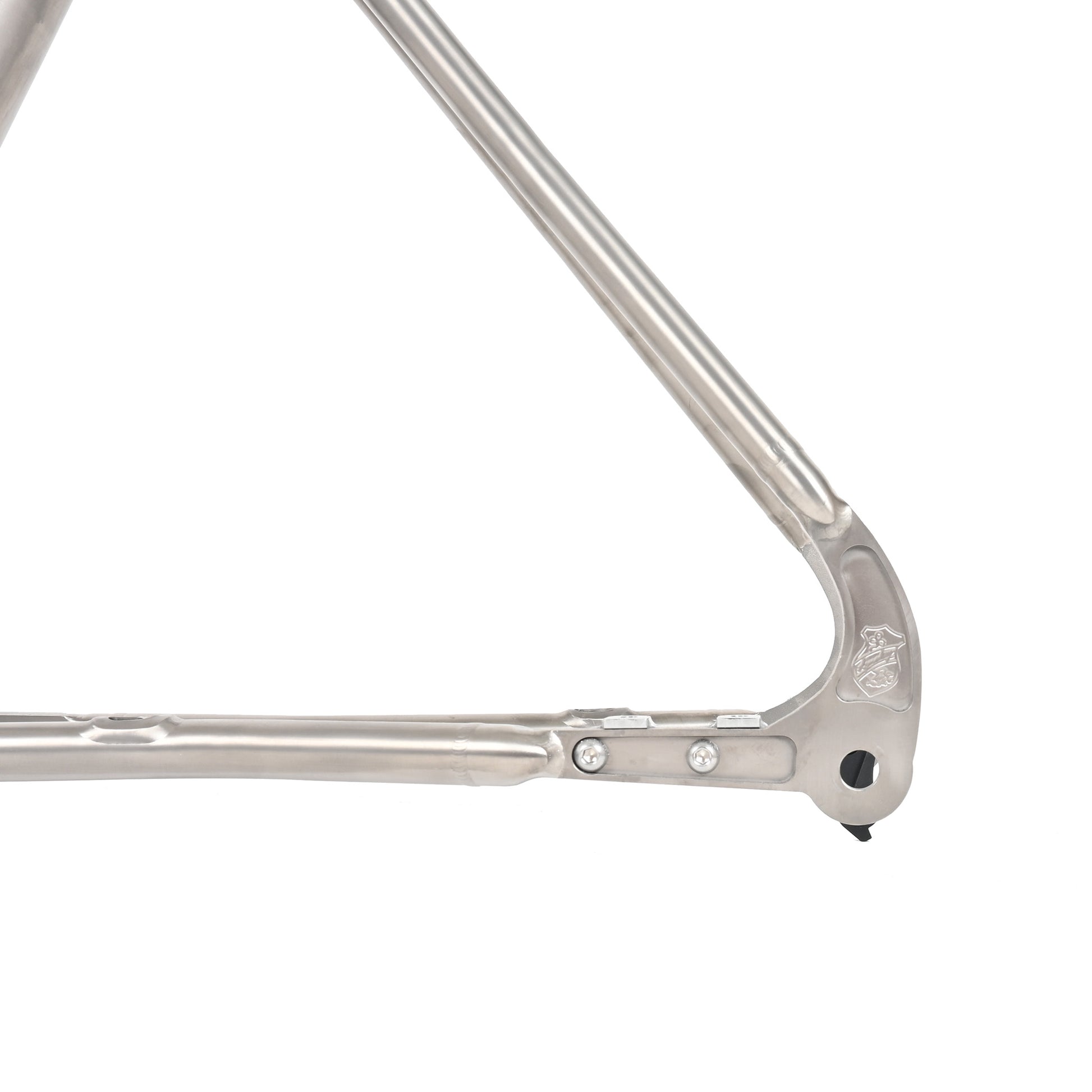

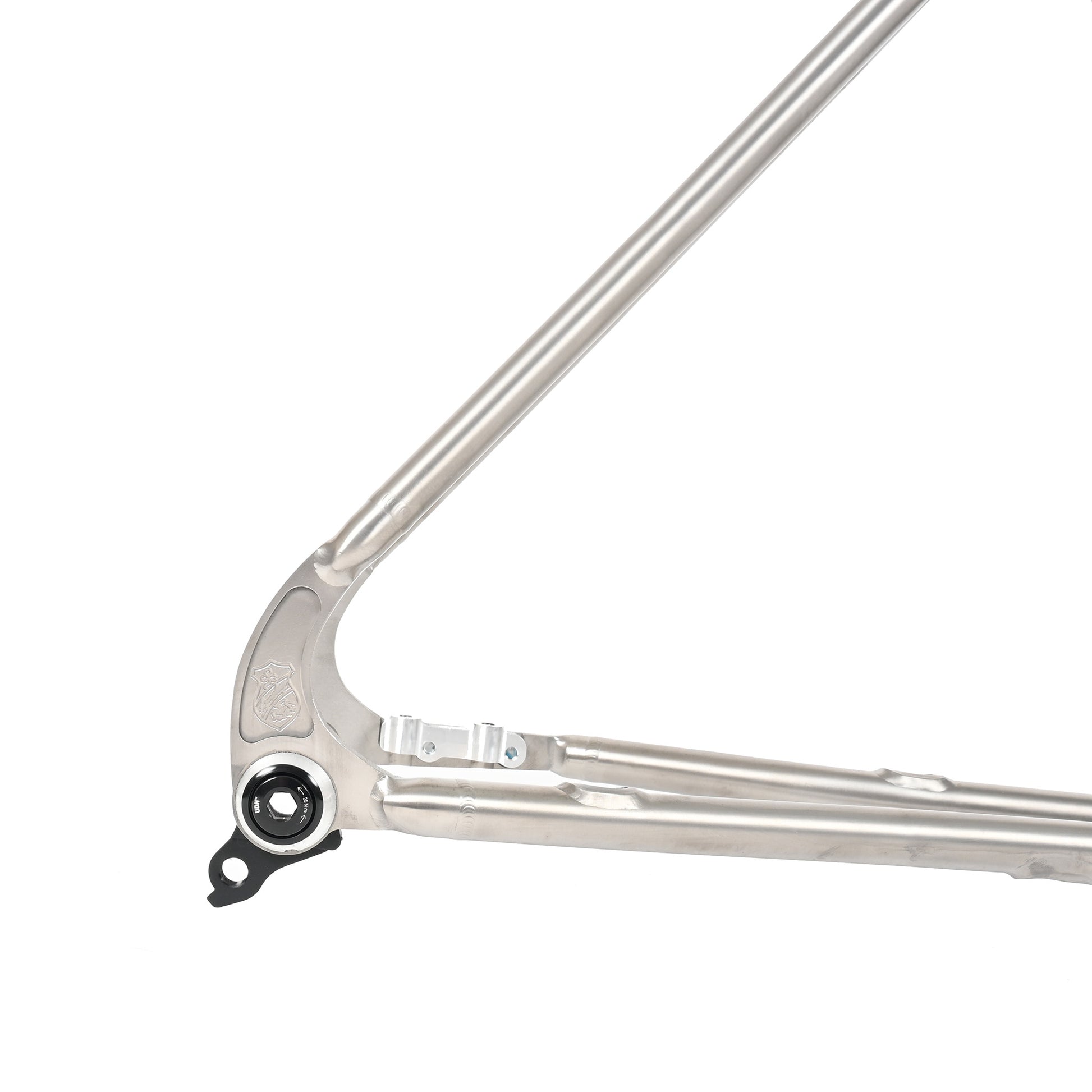

  • UDH compatible dropouts

Geometry Chart

Measurements shown below are in centimeters.

MERAKI SIZING XS S M ML L XL
Rec. Height: Domestic5'0" - 5'2"5'3" - 5'5"5'6" - 5'8"5'9" - 5'11"6'0" - 6'2"6'3"+
Rec. Height: International152cm - 157cm160cm - 165cm168cm - 173cm175cm - 180cm183cm - 188cm190cm+
Seat Tube Length (A)460480500520540560
Top Tube Length Effective (B)498520544558577593
Head Tube Angle (C)70.57171.571.573.573.5
Seat Tube Angle (D)75.574.57473.573.573.5
Bottom Bracket Drop (E)7575757574.574
Chain Stay Length (F)415415415415415415
Head Tube Length (G)120140160180198218
Rake (H)454545454545
Stand Over Height (I)738750770806830840
Wheelbase (J)9779851016103110441054
Front Center (K)574583598613627638
Stack (L)520541561580597617
Reach (M)364374383392400410
Frame Weight (lbs.)3.33.43.53.63.73.8
