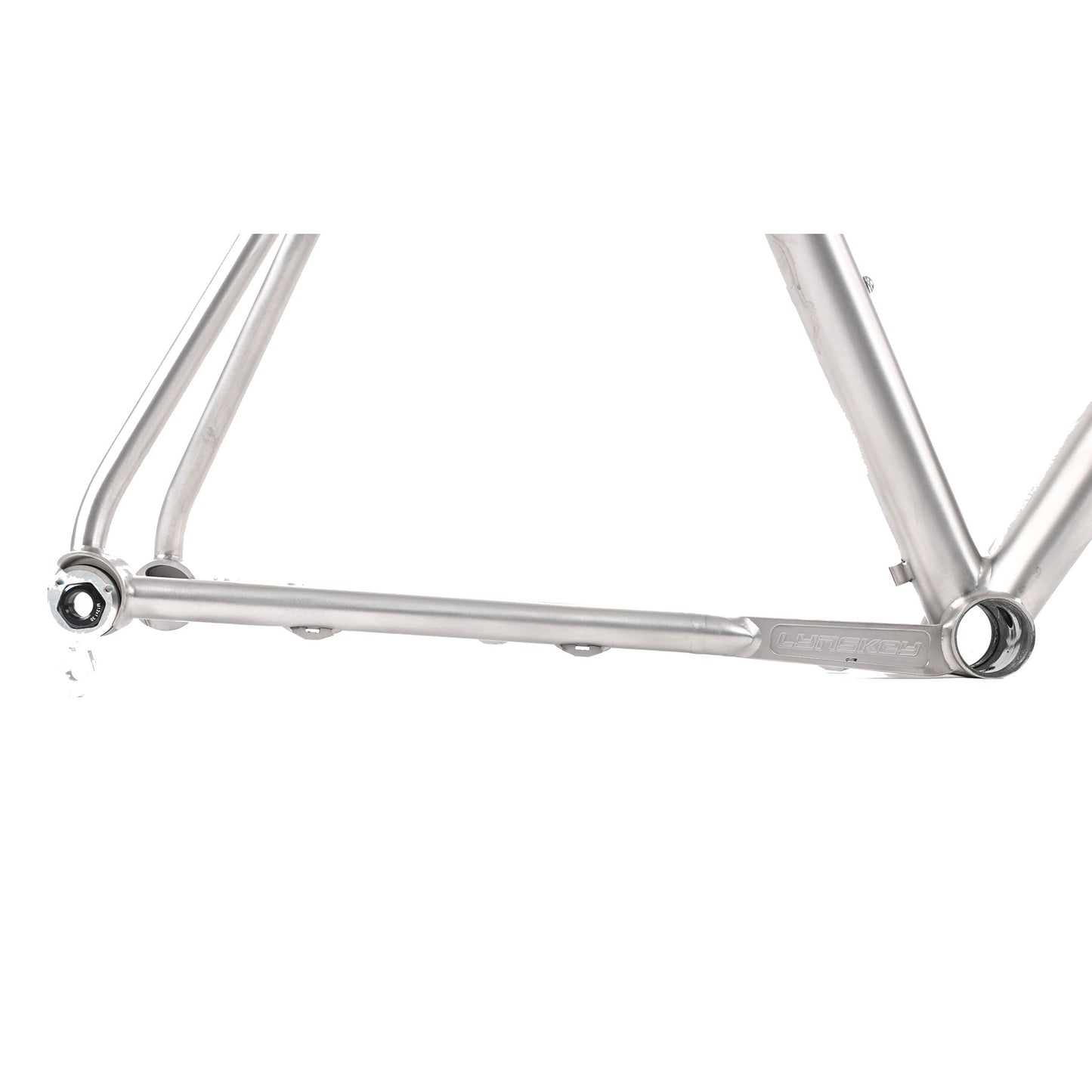

2024 R300 Disc Road Frame - Holiday Special
2024 R300 Disc Road Frame - Holiday Special
Almost Gone: 3 left to order
Couldn't load pickup availability
Description
Description
WHO IS THIS BIKE FOR
Cyclists who demand the pinnacle of comfort, control and smoothness . The R300 Disc is a bike that rides relaxed, yet confident all day long. It's up to you on how big you want to roll with a max tire width of 32c.
WHAT IT IS
The modern road bike you crave for everything from big elevation centuries to the weekend club ride. Light and smooth to its core with legendary “all day in the saddle comfort” combined with Sport level geometry. The 3AL/2V tubeset provides optimal vibration dampening for an excellent balanced ride feel. Extremely capable on the climbs and confidence-inspiring on the descents.
Key Features
Key Features
- Performance engineered 3AL-2.5V tubeset for responsiveness, stability, durability, and comfort
- External Cable Routing
- 27.2mm seat post
- (2) water bottle mounts
- Tapered Headtube
- 68mm English Threaded BSA Bottom Bracket Shell
- Conquer the road with clearance for 700c x 32c tires
Groupset Specs
Groupset Specs
| Shimano 105 2x12 | Component |
|---|---|
| Lever/Brakeset | Shimano 105 ST-R7120 levers/brakes |
| Brake Rotors | Shimano RT-CL800 rotors |
| Rear Derailleur | Shimano 105 7100 RD-R7100 |
| Front Derailluer | Shimano 105 7100 FD-R7100 |
| Braze-On Adapter | Shimano 34.9mm Band Clamp Adaptor |
| Cassette | Shimano 105 HG710 11-36t |
| Crankset | Shimano 105 FC-R7100 50/34t |
| Chain | Shimano CN-M6100 12 speed |
| Bottom Bracket | Shimano BBR60 |
| Fork | Speeder Road Disc Fork |
| Wheelset | Vision Team 30 |
| Tire | Kenda 700x30c |
| Handlebar | FSA Compact Alloy |
| Grip | Lynskey Bar Tape |
| Stem | FSA alloy |
| Headset | Cane Creek 40, IS42|52 |
| Seat Post | FSA alloy |
| Saddle | Lynskey Pro Saddle - Blk |
| Note | ***All parts subject to change based on availability with similar products*** |
Shipping
Shipping
Our unassembled shipping selection will arrive to you with the bottom bracket installed in the frame and the crown race installed on the fork. All other parts will be off of the bike and need to be fully installed and setup.
Our assembled shipping (for US customers) will be built up here at the factory and tested before shipping out to you. This will arrive to you with the front wheel removed from the fork, the handlebars out of the stem and and tucked next to the frame, and the seat/seat post removed from the frame.
Sizing/Geometry
Sizing/Geometry
Please refer to our geometry chart below for detailed sizing specifications.
You can select your preferred size when placing your order, and if you have any questions about fit, don’t hesitate to reach out. We’re happy to walk you through the details and can adjust your order if needed.
If you’re between sizes and seeking a more comfortable, long-distance fit, we typically recommend sizing up. This will give you a taller stack height and a slightly more upright riding position for added comfort.
If you prefer a racier, more performance-oriented fit, opt for the smaller size for a more compact and agile feel.

| R300 Geometry | XS | SM | MD | ML | LG | XL |
|---|---|---|---|---|---|---|
| Rec. Height Domestic | 5"0"-5'2" | 5"3"-5'5" | 5'6"-5'8" | 5'9"-5’11" | 6’0”-6’2” | 6'3"+ |
| Rec. Height International | 152cm-157cm | 160cm-165cm | 168cm-173cm | 175cm-180cm | 183cm-188cm | 190cm+ |
| Seat Tube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| ETT (Effective Top Tube) | 500 | 525 | 541 | 557 | 573 | 590 |
| Head Tube Angle | 71.5 | 72.5 | 72.5 | 73 | 73 | 73 |
| Seat Tube Angle | 75 | 74 | 73.5 | 73 | 73 | 72.5 |
| BB Drop | 70 | 70 | 69.8 | 67.5 | 67.5 | 66.5 |
| Chain Stay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| Head Tube Length | 120 | 141 | 156 | 176 | 196 | 218 |
| Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Standover Height | 738 | 750 | 770 | 790 | 806 | 830 |
| Wheelbase | 966 | 974 | 985 | 994 | 1009 | 1021 |
| Front Center | 562 | 569 | 581 | 589 | 603 | 615 |
| Stack | 520 | 542 | 556 | 575 | 594 | 614 |
| Reach | 359 | 369 | 376 | 382 | 391 | 396 |
| Frame Weight (lbs.) | 3.5 | 3.6 | 3.7 | 3.8 | 3.9 | 4.0 |
