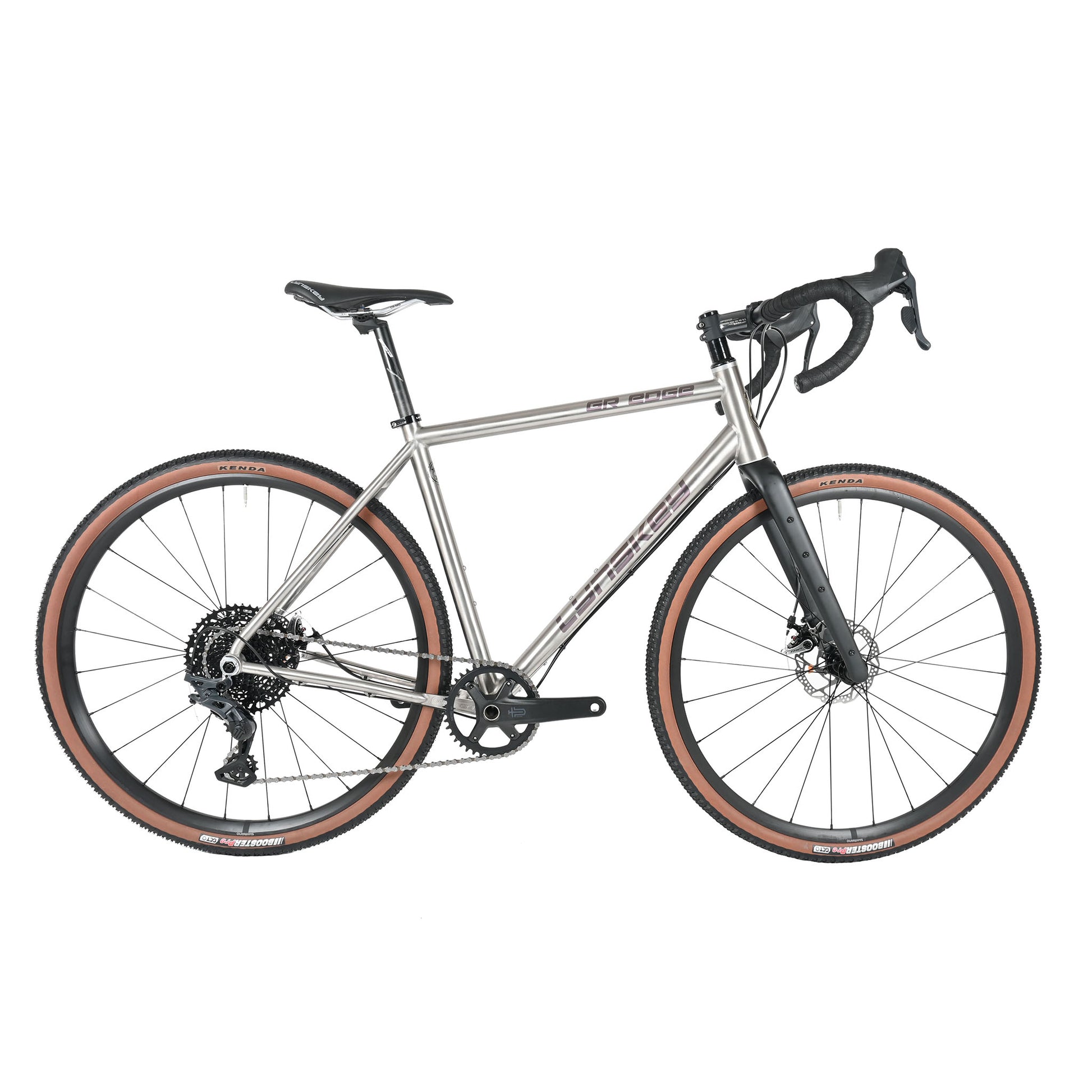

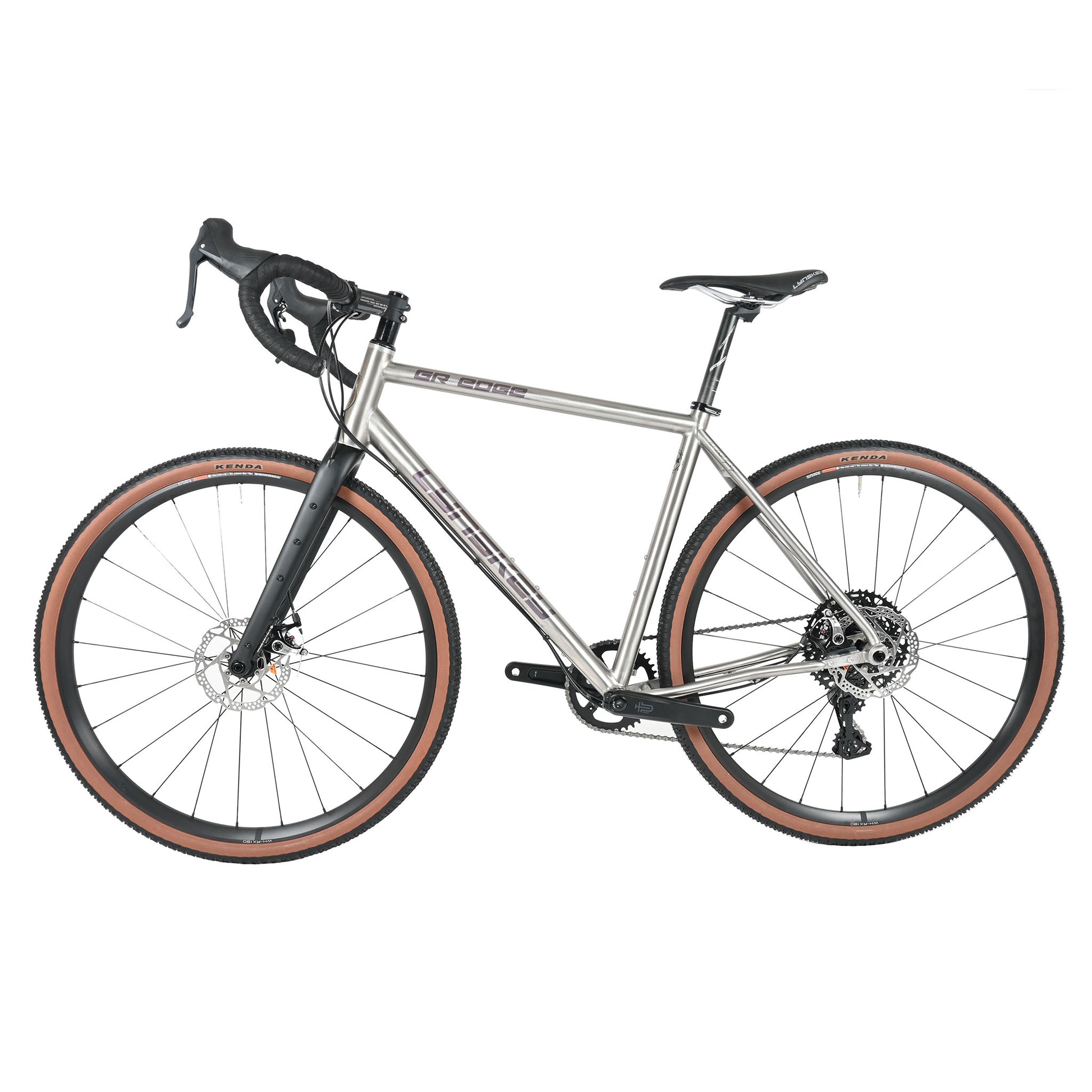

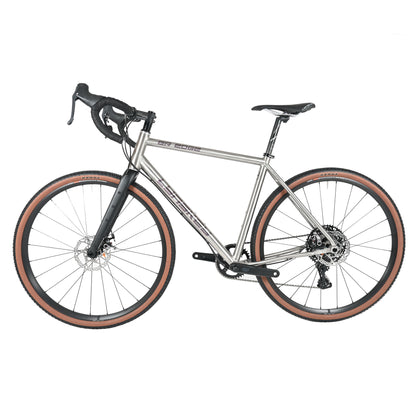

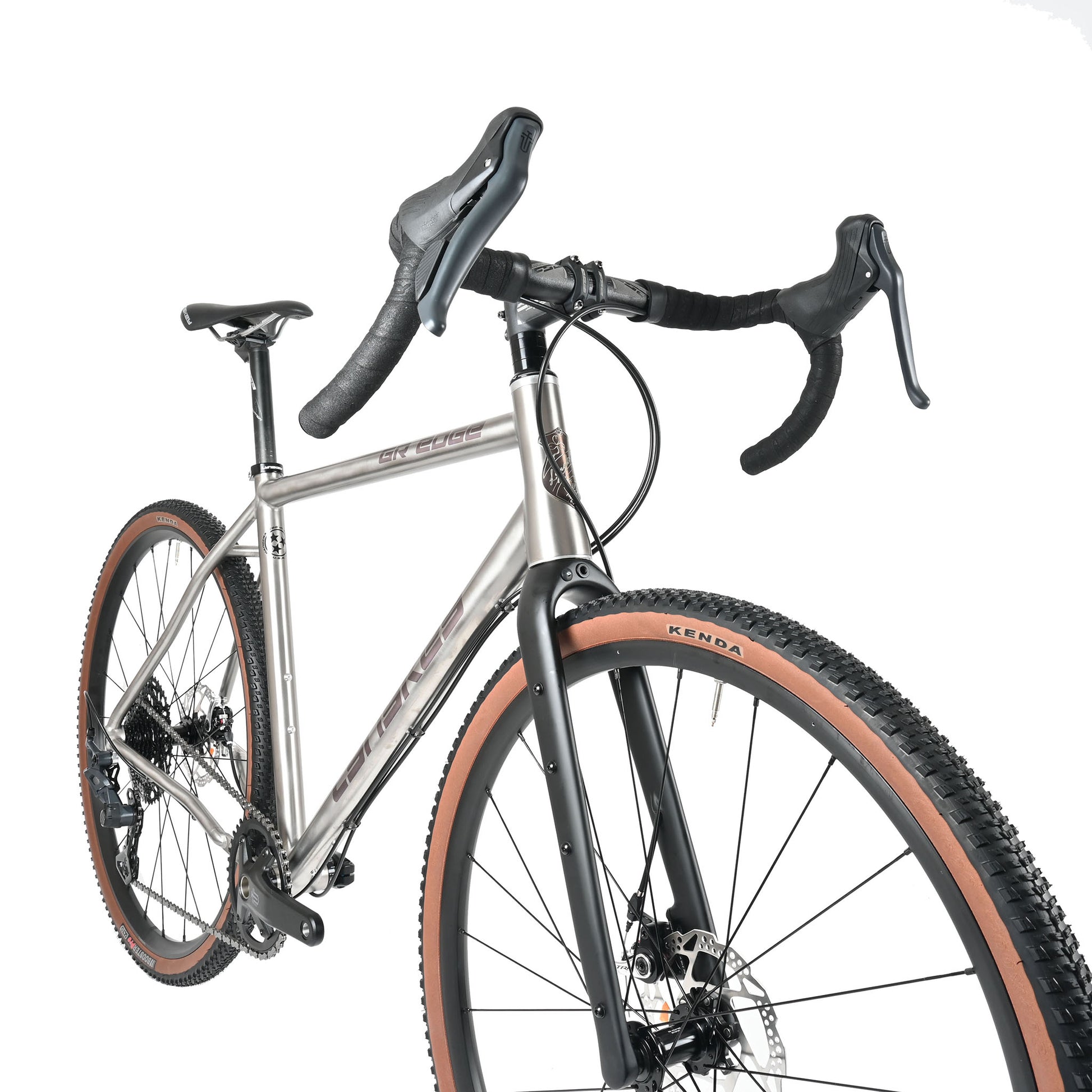

GR Edge Complete Bike

GR Edge Complete Bike

$2,199.00
$3,575.00 $2,199.00
38% off Sold out
100% Satisfaction Guarantee Shop with confidence Lifetime Warranty Titanium frames built to last Buy Now, Pay Later 0% APR options available
Size

Description

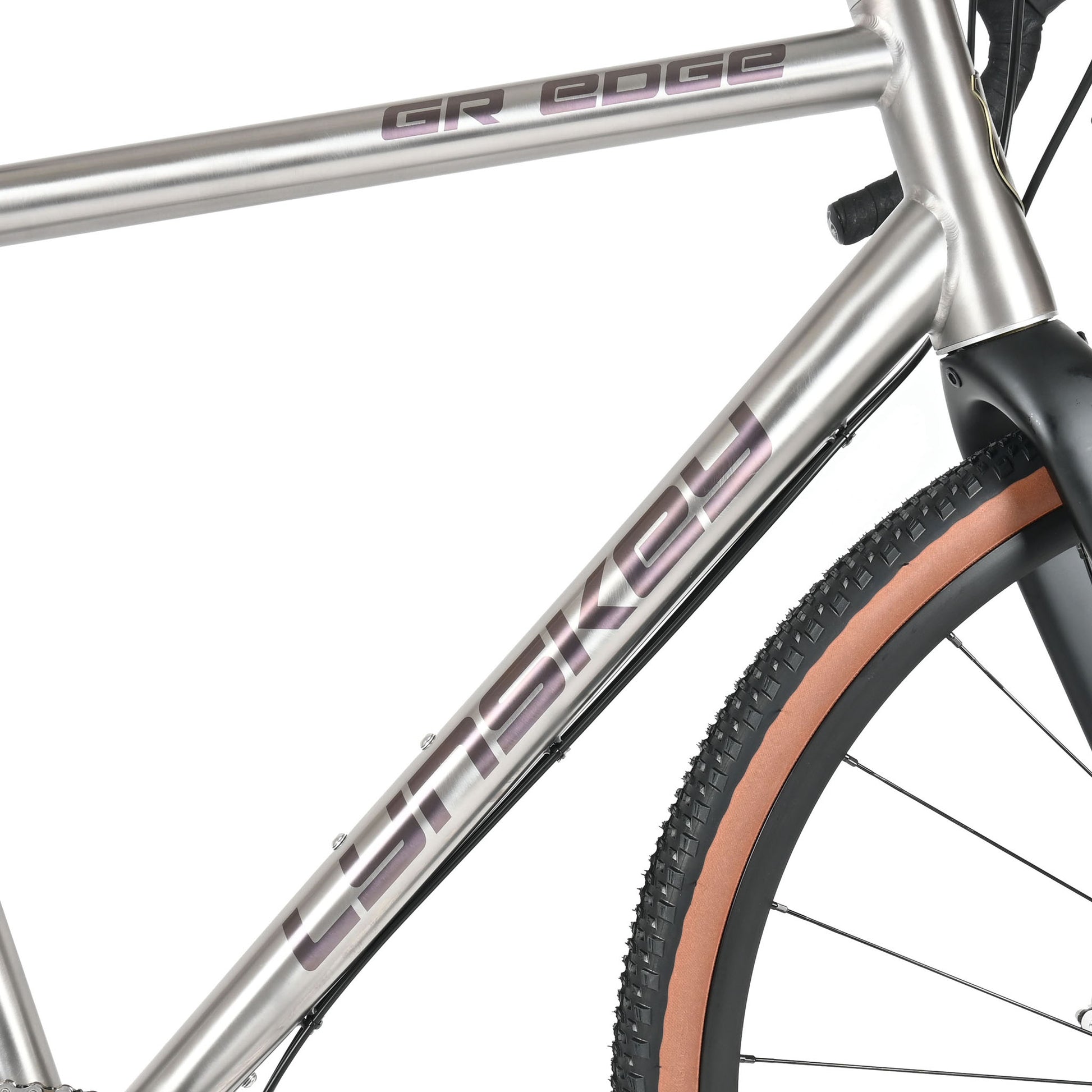

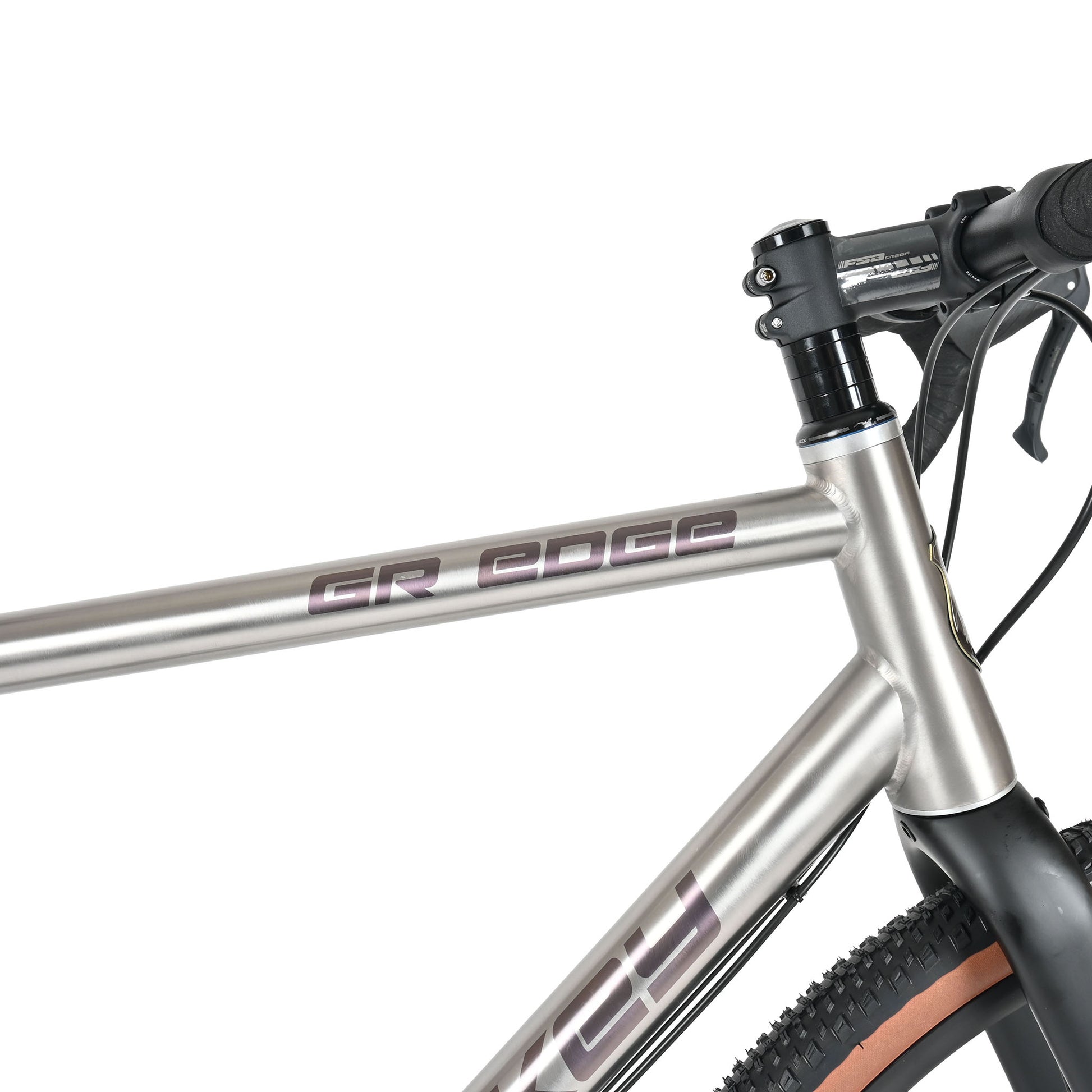

The GR Edge is a premium titanium gravel frame handcrafted in Chattanooga, Tennessee, designed for riders who refuse to settle for carbon compromises. Built from 3AL/2.5V aerospace-grade titanium, the GR Edge offers exceptional durability, vibration damping and a smooth ride feel that only titanium can provide.

With adventure-driven geometry that places the rider in the cockpit for enhanced control and stability on loose terrain, the GR Edge is the ideal starting point for a dream gravel build that can handle any terrain, any day.

This is the bike for riders who want confidence when the road disappears and adventure begins. Whether gravel racing, bikepacking or exploring mixed terrain, the GR Edge offers legendary Lynskey ride quality, enduring craftsmanship and limitless capability — a true all-road titanium frame built to last a lifetime.

Key Features

  • Adventure-Ready Geometry
  • 3AL/2.5V Titanium Tubeset
  • 27.2mm seat post
  • External Cable Routing
  • Massive Tire Clearance up to 700x45c or 650bx2.1"
  • 3 Bottle Cage Mounts
  • Tapered Headtube
  • 68mm English Threaded BSA Bottom Bracket Shell:
  • Wright-Style Dropouts with Replaceable Hanger

microSHIFT SWORD 1x10

microSHIFT Sword 1x10 Component
Lever/Brakeset microSHIFT Sword Drop Bar Shifter/Brake Set
Brake Rotors Shimano RT54

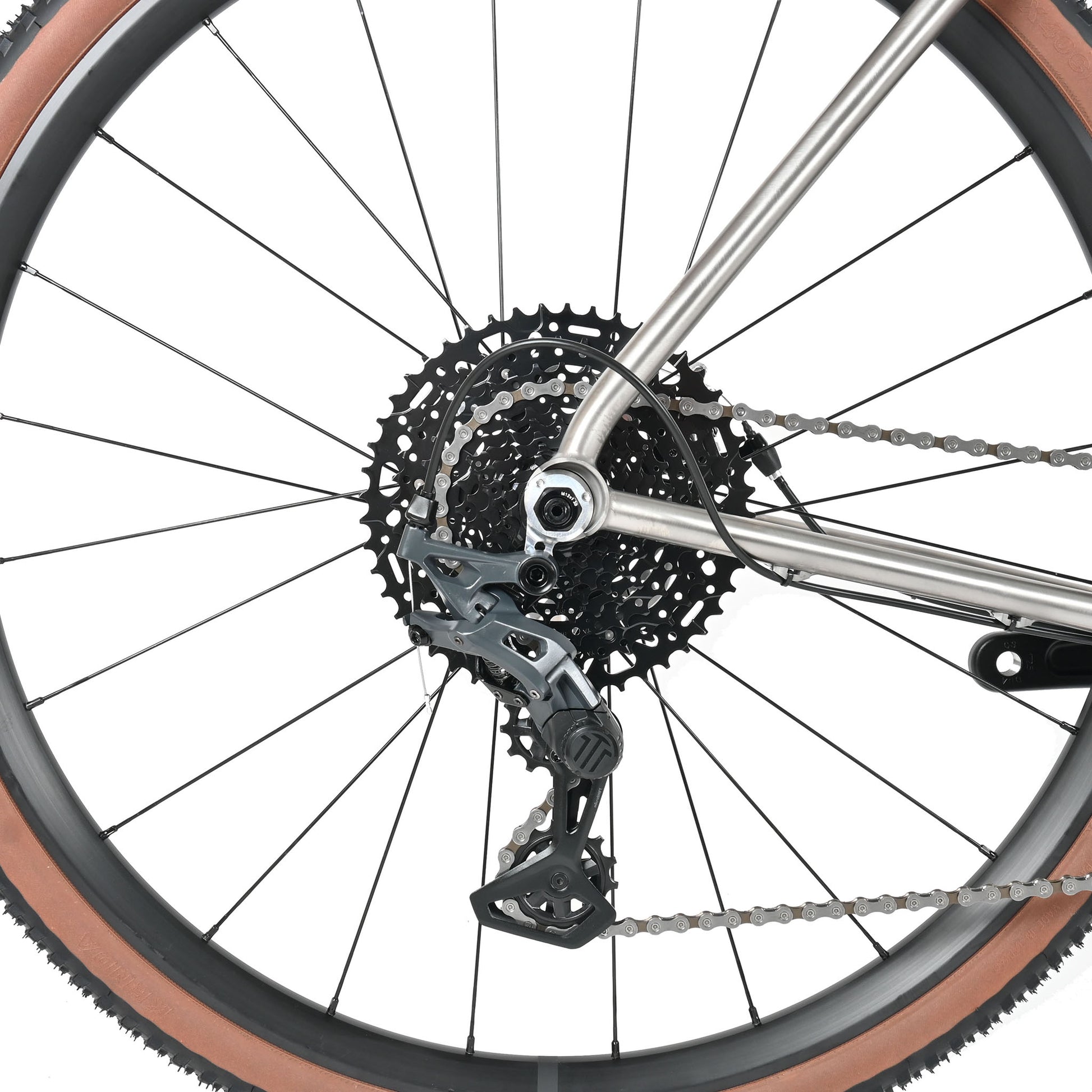

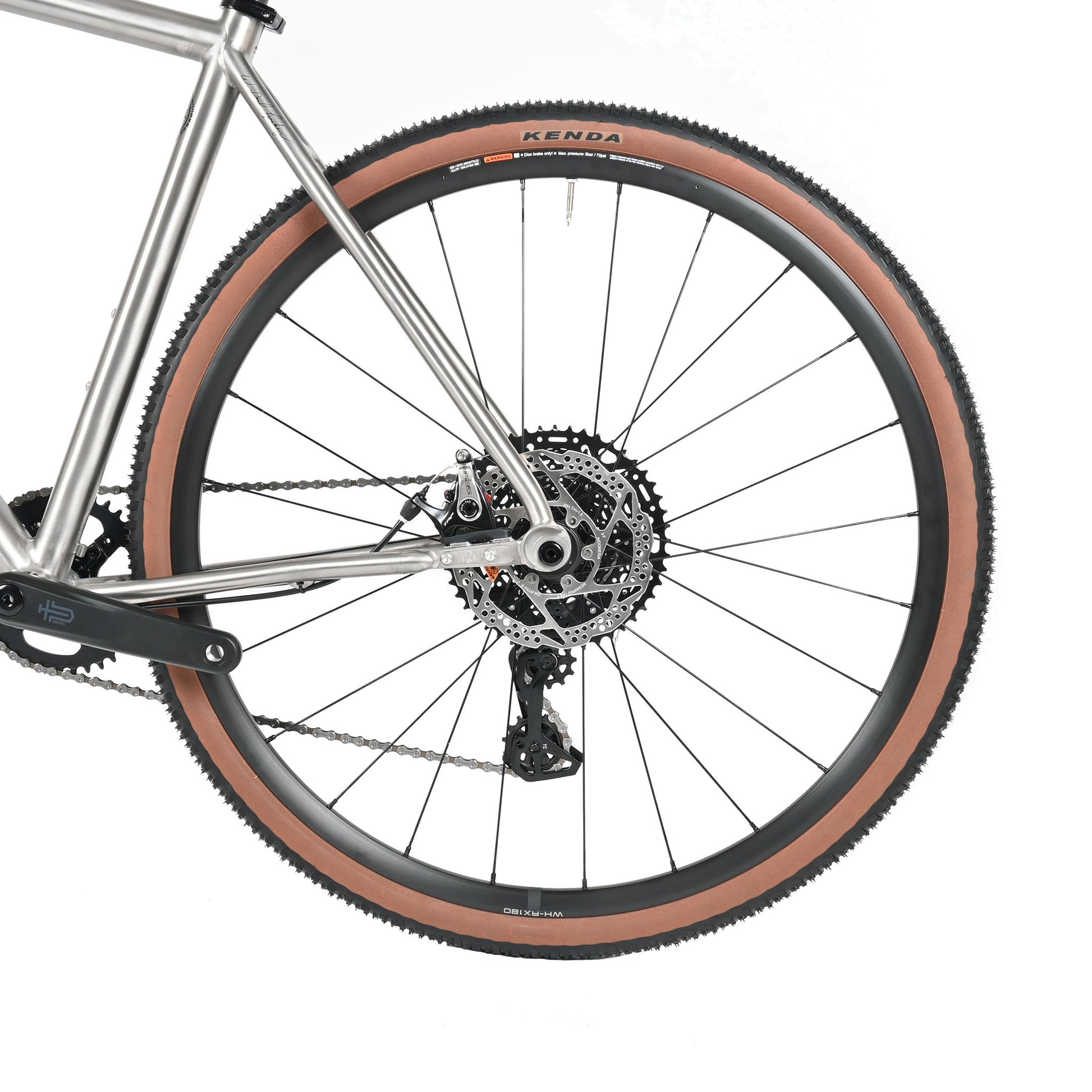

Rear Derailleur microSHIFT Sword 10 speed
Cassette microSHIFT ADVENT X 11-48t

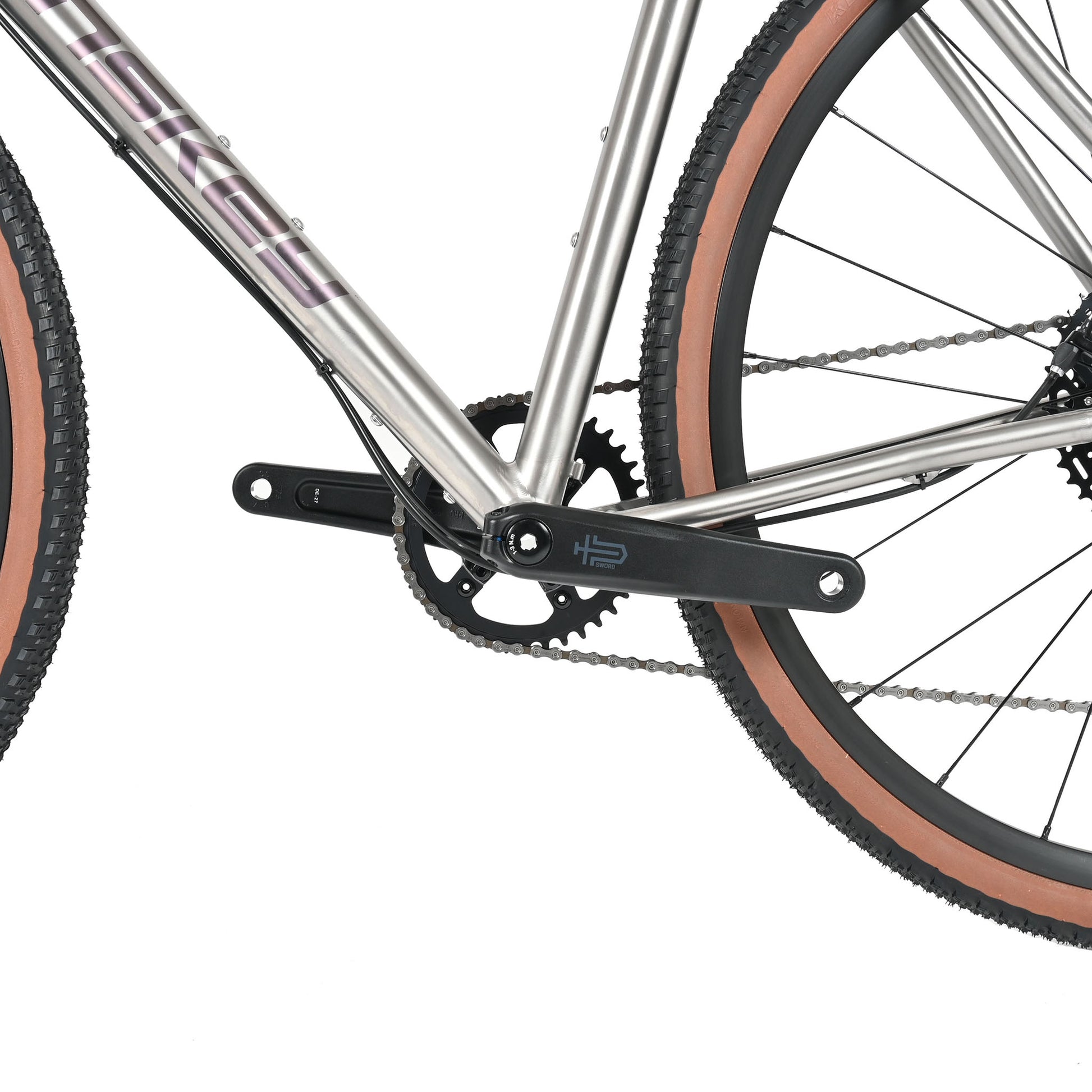

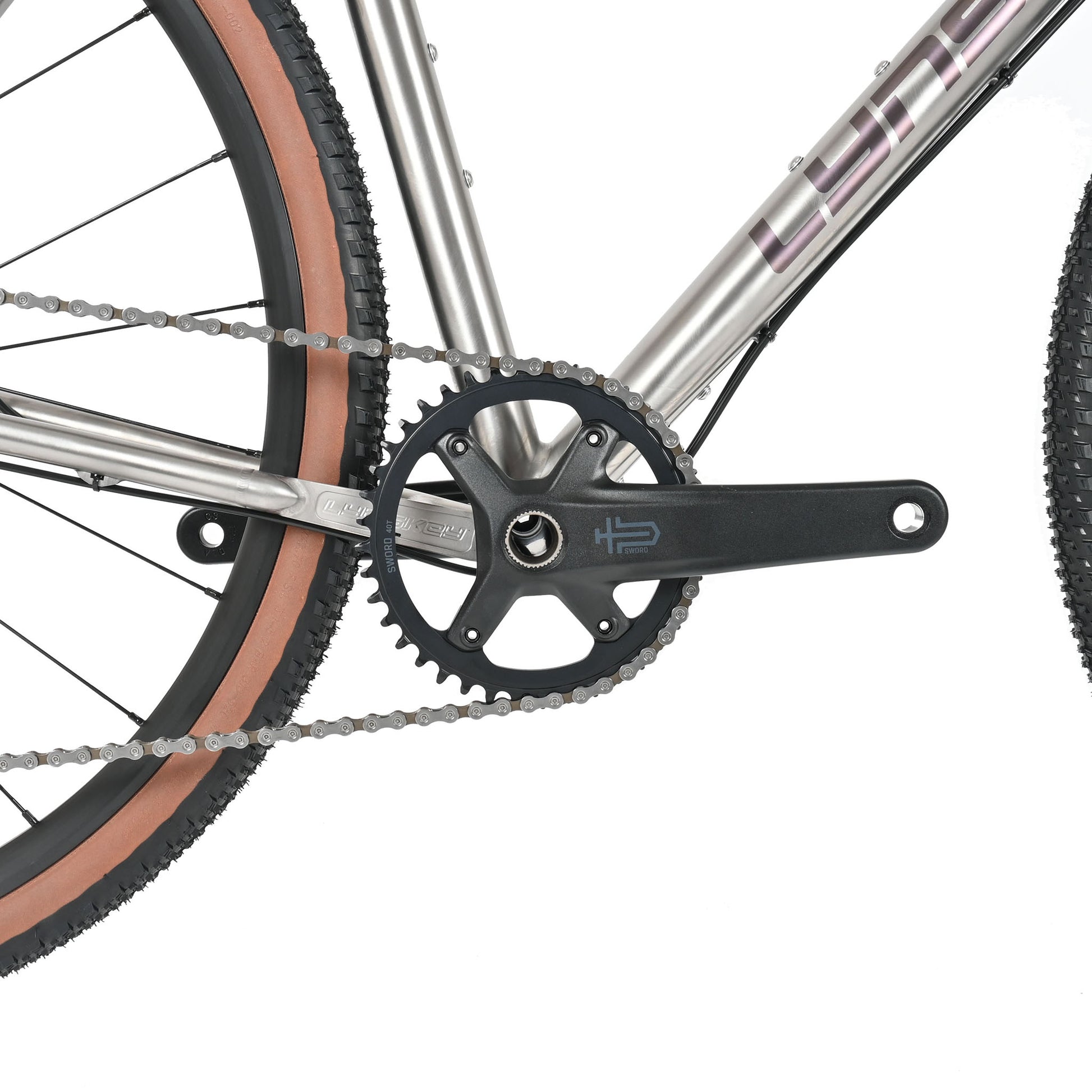

Crankset microSHIFT Sword 40t
Chain FSA Team Issue 10 speed
Bottom Bracket Shimano SM-BBR60

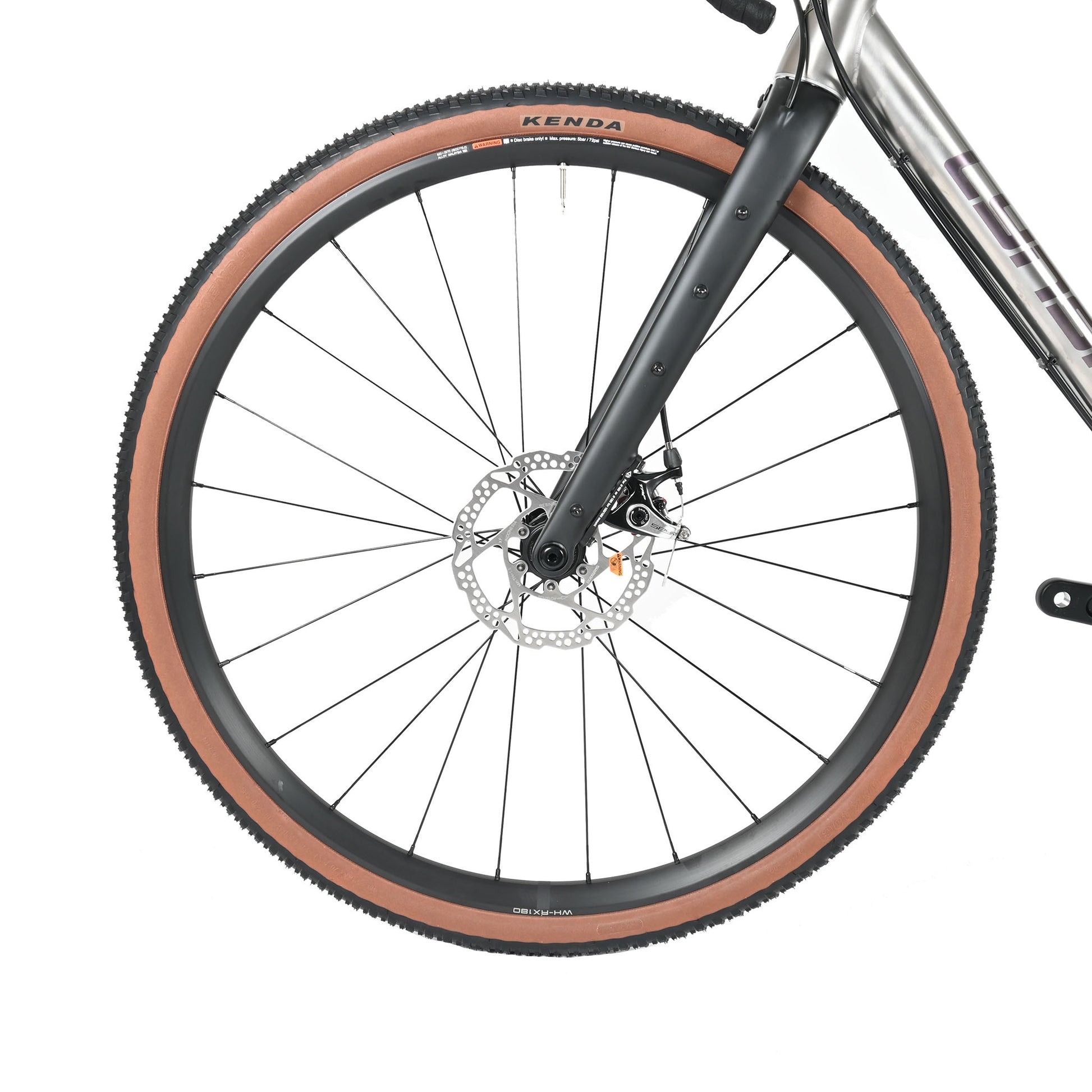

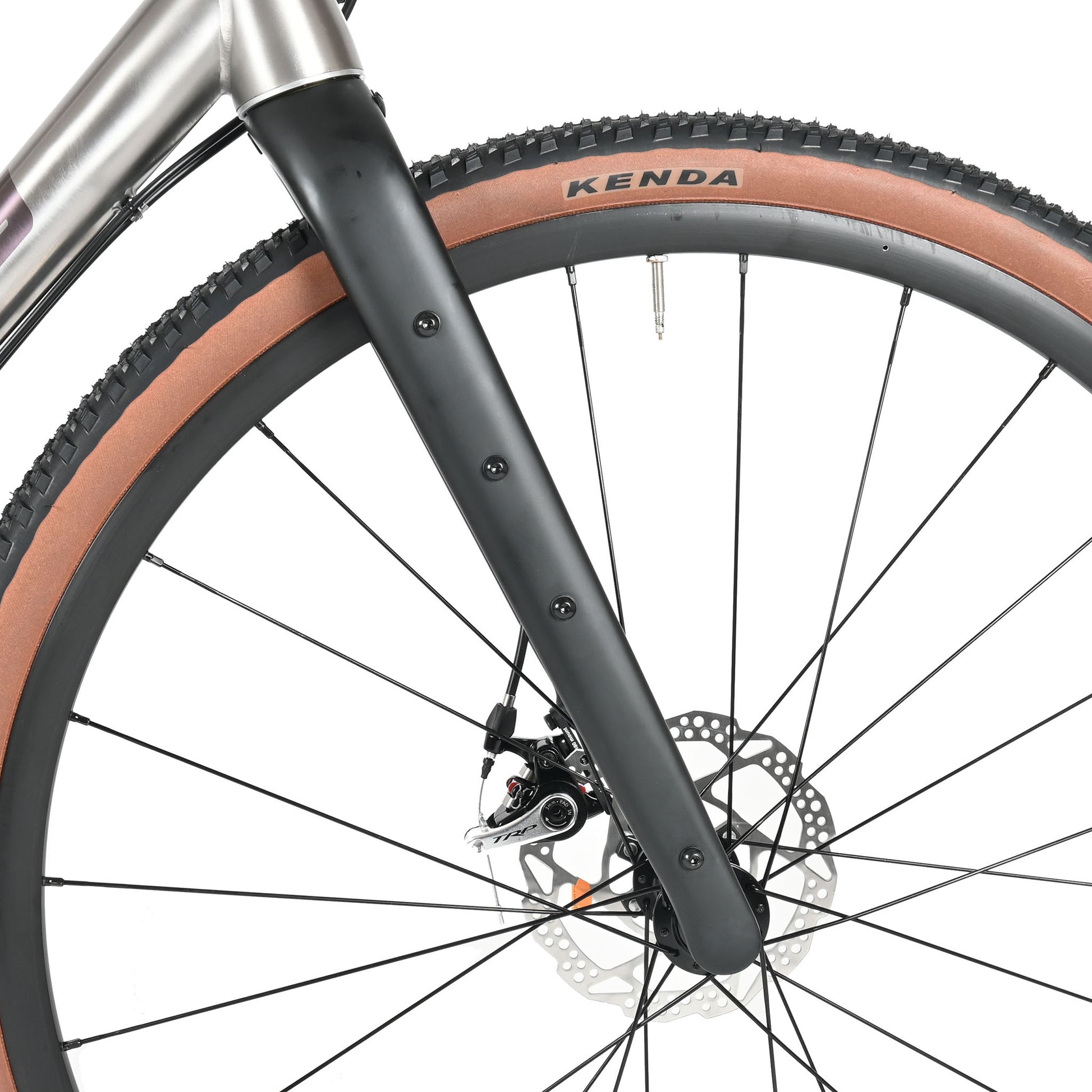

Fork Speeder Adventure Fork

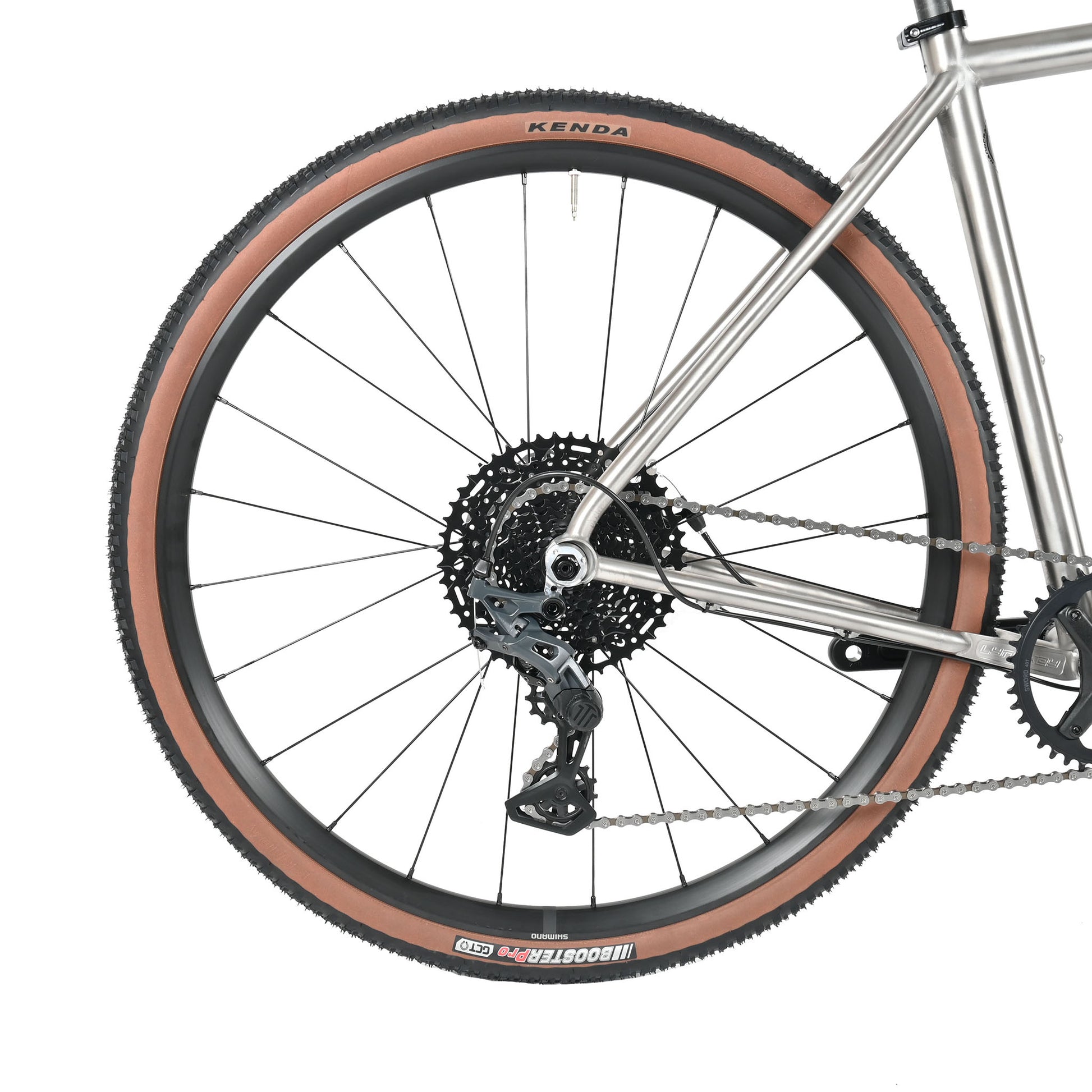

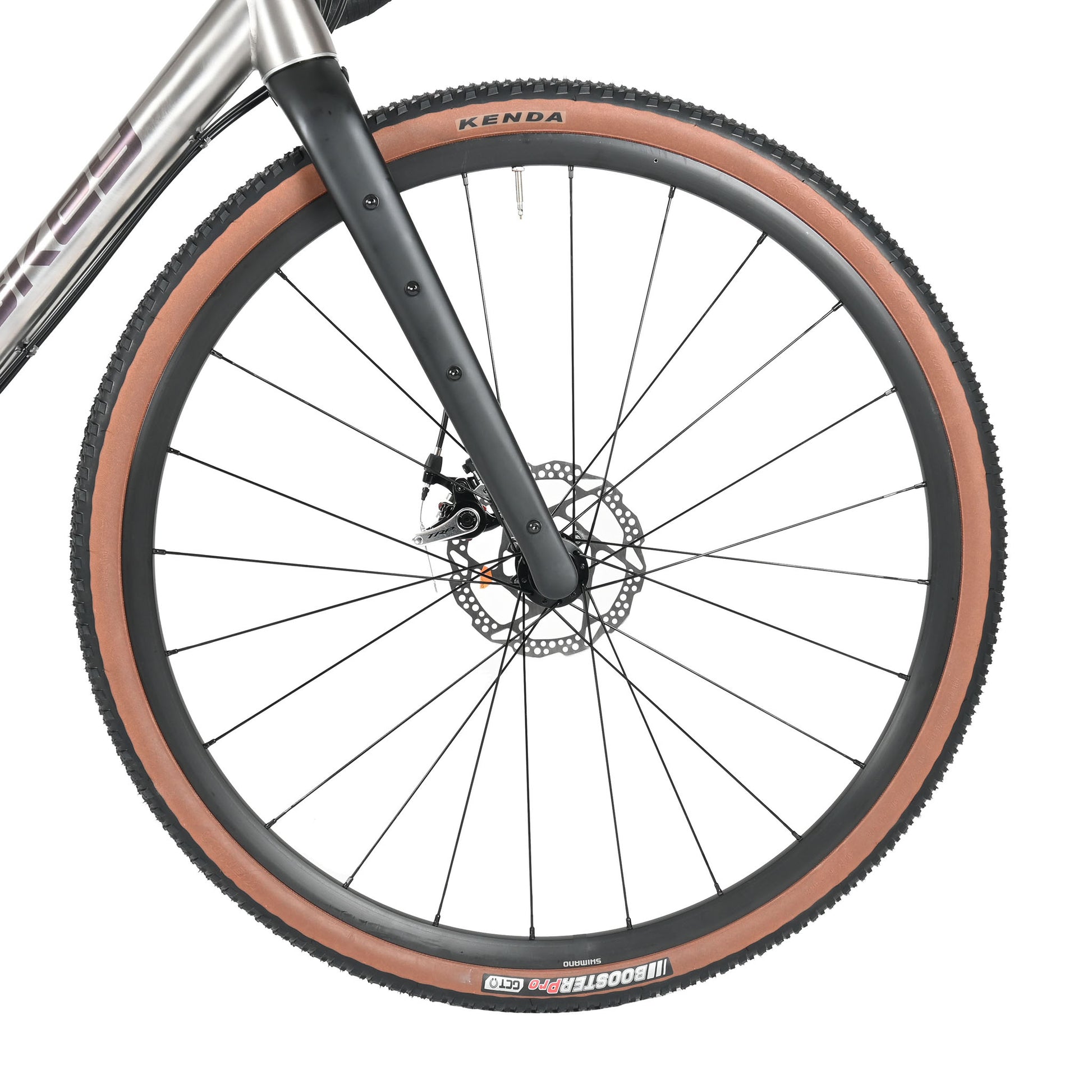

Wheelset Shimano RX180 700c
Tire Kenda 700x40c
Handlebar FSA Adventure Alloy Bar
Grip Lynskey Bar Tape
Stem FSA alloy
Headset Cane Creek 40 IS42/52
Seat Post FSA alloy
Saddle Lynskey Pro Saddle - Blk
Note ***All parts subject to change based on availability with similar products***

Shimano GRX 810 1x11 mechanical

Shimano GRX 820 1x12 Component
Lever/Brakeset Shimano RX820 STI Shifter/Brake Levers
Brake Rotors Shimano Rotors
Rear Derailleur Shimano GRX 822 12 speed
Cassette Shimano CS-M8100 11-51t
Crankset Shimano GRX 820 1x12 40t
Chain Shimano N-M7100
Bottom Bracket Shimano SM-BBR60
Fork Speeder Adventure Fork
Wheelset Shimano RX180 700c
Tire Kenda 700x40c
Handlebar FSA Adventure Alloy Bar
Grip Lynskey Bar Tape
Stem FSA alloy
Headset Cane Creek 40 IS42/52
Seat Post FSA alloy
Saddle Lynskey Pro Saddle - Blk
Note ***All parts subject to change based on availability with similar products***

Shimano GRX 820 2x12 mechanical

Shimano GRX 820 2x12 Component
Lever/Brakeset Shimano ST-RX820 2x12 Speed STI Left Shifter(W/ BR-RX810 FM Caliper)
Lever/Brakeset Shimano ST-RX820 2x12 Speed Right Shifter(W/ BR-RX810 FM Caliper)
Brake Adaptor Shimano R160 Disc Brake Adaptor, 160mm Rotor, Flat-Mount
Brake Rotors Shimano Ultegra RT800S 160mm Centerlock Disc Brake Rotor
Rear Derailleur Shimano GRX 12 speed rear Derailleur - Long Cage for 2x
Front Derailleur Shimano GRX 2x12 Speed Front Derailleur
Braze-on Adaptor Shimano Front Derailleur Braze-on Adaptor 34.9mm
Cassette Shimano CS-HG710-12 speed road cassette 11-36t
Crankset Shimano GRX 820 2x12-SPD CRANKSET
Chain Shimano CN-m7100 QL Chain - 12 Speed
Bottom Bracket Shimano BBR60 68mm English Threaded Bottom Bracket
Rear Axle Lynskey 12x142 Rear Axle
Fork Speeder 50c Adventure Fork
Wheelset Shimano RX180
Tire Kenda 700x40c
Tube Presta 700c
Handlebar FSA Adventure Bar
Bar Tape Lynskey Bar Tape
Stem FSA alloy
Headset FSA Orbit C-40 Headset, IS42|52
Compression Plug FSA Compression Plug
Headset Spacer FSA Headset Spacer Kit - 3x10mm, 2x5mm
Seat Post FSA alloy
Saddle Lynskey Pro Saddle - Blk
Note ***All parts subject to change based on availability with similar products***

Shipping

Our unassembled shipping selection will arrive to you with the bottom bracket installed in the frame and the crown race installed on the fork. All other parts will be off of the bike and need to be fully installed and setup.

Our assembled shipping (for US customers) will be built up here at the factory and tested before shipping out to you. This will arrive to you with the front wheel removed from the fork, the handlebars out of the stem and and tucked next to the frame, and the seat/seat post removed from the frame.

Sizing/Geometry

Please refer to our geometry chart below for detailed sizing specifications.

You can select your preferred size when placing your order, and if you have any questions about fit, don’t hesitate to reach out. We’re happy to walk you through the details and can adjust your order if needed.

If you’re between sizes and seeking a more comfortable, long-distance fit, we typically recommend sizing up. This will give you a taller stack height and a slightly more upright riding position for added comfort.

If you prefer a racier, more performance-oriented fit, opt for the smaller size for a more compact and agile feel.

View full details
GR Edge Geometry XS SM MD ML LG XL
Rec. Height Domestic 5"0"-5'2" 5"3"-5'5" 5'6"-5'8" 5'9"-5’11" 6’0”-6’2” 6'3"+
Rec. Height International 152cm-157cm 160cm-165cm 168cm-173cm 175cm-180cm 183cm-188cm 190cm+
Seat Tube Length 450 470 490 510 530 550
ETT (Effective Top Tube) 524 538 550 565 580 600
Head Tube Angle 70 70 70.5 70.5 71 71
Seat Tube Angle 74 73.5 73.5 73 73 72.5
BB Drop 80 77.5 77.5 75 75 72.5
Chain Stay Length 435 435 435 435 435 435
Head Tube Length 110 126 145 169 193 217
Rake 45 45 45 45 45 45
Standover Height 716 737 758 780 806 824
Wheelbase 1018 1028 1036 1050 1057 1075
Front Center 595 605 612 625 633 650
Stack 530 550 570 590 615 635
Reach 370 375 380 385 390 400
Frame Weight (lbs.) 3.8 3.9 4.0 4.1 4.2 4.3
